1/2" Electric Power Fittings HDG Forged Double Armign Bolts
Price:
Negotiable
MOQ:
1 ton
Delivery Time:
60 days
Brand:
LKY
Product Description

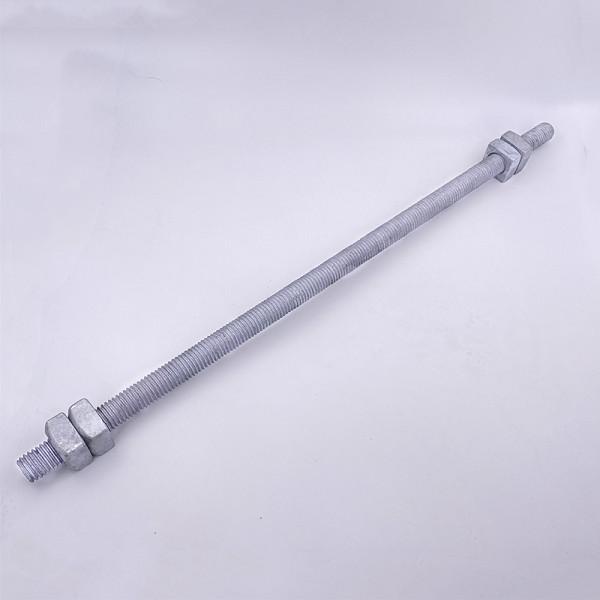

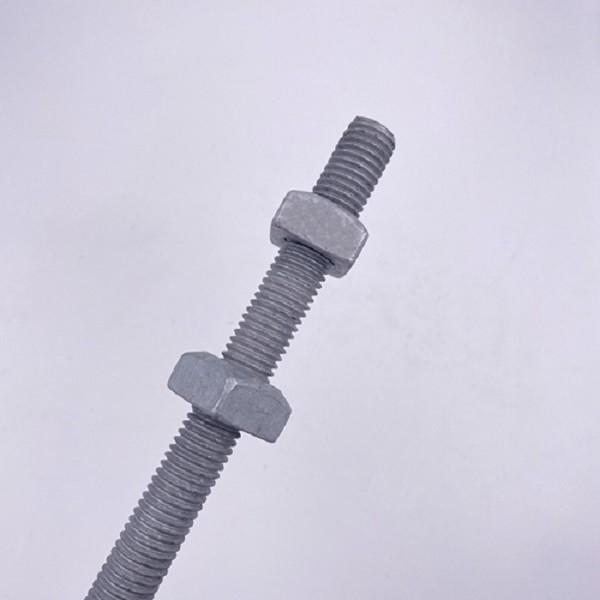

H.D.G. Forged Double Armign Bolts
Double arming bolt is also called double threaded bolt, double ended bolt, or DA bolt. According to the length of the thread, the double arming bolts include all thread bolts and double threaded bolts. Contact us for size not listed on tables below.
1/2" DOUBLE ARMING BOLT WITH 2 NUTS
| Length (Inches) | Finish | couple with | Weight |
| 8 | Hot Dip Galvanized | 4 Square Nuts | 0.61 |
| 10 | Hot Dip Galvanized | 4 Square Nuts | 0.7 |
| 12 | Hot Dip Galvanized | 4 Square Nuts | 0.79 |
| 14 | Hot Dip Galvanized | 4 Square Nuts | 0.88 |
| 16 | Hot Dip Galvanized | 4 Square Nuts | 0.97 |
| 18 | Hot Dip Galvanized | 4 Square Nuts | 1.06 |
| 20 | Hot Dip Galvanized | 4 Square Nuts | 1.15 |
| 22 | Hot Dip Galvanized | 4 Square Nuts | 1.24 |
| 24 | Hot Dip Galvanized | 4 Square Nuts | 1.33 |
| 26 | Hot Dip Galvanized | 4 Square Nuts | 1.42 |
| 28 | Hot Dip Galvanized | 4 Square Nuts | 1.51 |
| 30 | Hot Dip Galvanized | 4 Square Nuts | 1.6 |
| 32 | Hot Dip Galvanized | 4 Square Nuts | 1.69 |
| 34 | Hot Dip Galvanized | 4 Square Nuts | 1.78 |
| 36 | Hot Dip Galvanized | 4 Square Nuts | 1.87 |
5/8" DOUBLE ARMING BOLT WITH 4 NUTS
| Length (Inches) | Finish | couple with | Weight |
| 8 | Hot Dip Galvanized | 4 Square Nuts | 0.95 |
| 10 | Hot Dip Galvanized | 4 Square Nuts | 1.09 |
| 12 | Hot Dip Galvanized | 4 Square Nuts | 1.23 |
| 14 | Hot Dip Galvanized | 4 Square Nuts | 1.37 |
| 16 | Hot Dip Galvanized | 4 Square Nuts | 1.51 |
| 18 | Hot Dip Galvanized | 4 Square Nuts | 1.65 |
| 20 | Hot Dip Galvanized | 4 Square Nuts | 1.79 |
| 22 | Hot Dip Galvanized | 4 Square Nuts | 1.93 |
| 24 | Hot Dip Galvanized | 4 Square Nuts | 2.07 |
| 26 | Hot Dip Galvanized | 4 Square Nuts | 2.21 |
| 28 | Hot Dip Galvanized | 4 Square Nuts | 2.35 |
| 30 | Hot Dip Galvanized | 4 Square Nuts | 2.49 |
| 32 | Hot Dip Galvanized | 4 Square Nuts | 2.63 |
| 34 | Hot Dip Galvanized | 4 Square Nuts | 2.77 |
| 36 | Hot Dip Galvanized | 4 Square Nuts | 2.91 |
3/4" DOUBLE ARMING BOLT WITH 4 NUTS
| Length (Inches) | Finish | couple with | Weight |
| 8 | Hot Dip Galvanized | 4 Square Nuts | 1.43 |
| 10 | Hot Dip Galvanized | 4 Square Nuts | 1.64 |
| 12 | Hot Dip Galvanized | 4 Square Nuts | 1.85 |
| 14 | Hot Dip Galvanized | 4 Square Nuts | 2.06 |
| 16 | Hot Dip Galvanized | 4 Square Nuts | 2.27 |
| 18 | Hot Dip Galvanized | 4 Square Nuts | 2.48 |
| 20 | Hot Dip Galvanized | 4 Square Nuts | 2.69 |
| 22 | Hot Dip Galvanized | 4 Square Nuts | 2.9 |
| 24 | Hot Dip Galvanized | 4 Square Nuts | 3.11 |
| 26 | Hot Dip Galvanized | 4 Square Nuts | 3.32 |
| 28 | Hot Dip Galvanized | 4 Square Nuts | 3.53 |
| 30 | Hot Dip Galvanized | 4 Square Nuts | 3.74 |
| 32 | Hot Dip Galvanized | 4 Square Nuts | 3.95 |
| 34 | Hot Dip Galvanized | 4 Square Nuts | 4.16 |
| 36 | Hot Dip Galvanized | 4 Square Nuts | 4.37 |
7/8" DOUBLE ARMING BOLT WITH 4 NUTS
| Length (Inches) | Finish | couple with | Weight |
| 8 | Hot Dip Galvanized | 4 Square Nuts | 2.04 |
| 10 | Hot Dip Galvanized | 4 Square Nuts | 2.32 |
| 12 | Hot Dip Galvanized | 4 Square Nuts | 2.6 |
| 14 | Hot Dip Galvanized | 4 Square Nuts | 2.88 |
| 16 | Hot Dip Galvanized | 4 Square Nuts | 3.16 |
| 18 | Hot Dip Galvanized | 4 Square Nuts | 3.44 |
| 20 | Hot Dip Galvanized | 4 Square Nuts | 3.72 |
| 22 | Hot Dip Galvanized | 4 Square Nuts | 4 |
| 24 | Hot Dip Galvanized | 4 Square Nuts | 4.28 |
| 26 | Hot Dip Galvanized | 4 Square Nuts | 4.56 |
| 28 | Hot Dip Galvanized | 4 Square Nuts | 4.84 |
| 30 | Hot Dip Galvanized | 4 Square Nuts | 5.12 |
| 32 | Hot Dip Galvanized | 4 Square Nuts | 5.4 |
| 34 | Hot Dip Galvanized | 4 Square Nuts | 5.68 |
| 36 | Hot Dip Galvanized | 4 Square Nuts | 5.96 |
1" DOUBLE ARMING BOLT WITH 4 NUTS
| Length (Inches) | Finish | couple with | Weight |
| 8 | Hot Dip Galvanized | 4 Square Nuts | 2.69 |
| 10 | Hot Dip Galvanized | 4 Square Nuts | 3.07 |
| 12 | Hot Dip Galvanized | 4 Square Nuts | 3.45 |
| 14 | Hot Dip Galvanized | 4 Square Nuts | 3.83 |
| 16 | Hot Dip Galvanized | 4 Square Nuts | 4.21 |
| 18 | Hot Dip Galvanized | 4 Square Nuts | 4.59 |
| 20 | Hot Dip Galvanized | 4 Square Nuts | 4.97 |
| 22 | Hot Dip Galvanized | 4 Square Nuts | 5.35 |
| 24 | Hot Dip Galvanized | 4 Square Nuts | 5.73 |
| 26 | Hot Dip Galvanized | 4 Square Nuts | 6.11 |
| 28 | Hot Dip Galvanized | 4 Square Nuts | 6.49 |
| 30 | Hot Dip Galvanized | 4 Square Nuts | 6.87 |
| 32 | Hot Dip Galvanized | 4 Square Nuts | 7.25 |
| 34 | Hot Dip Galvanized | 4 Square Nuts | 7.63 |
| 36 | Hot Dip Galvanized | 4 Square Nuts | 8.01 |
