78lbs To 125lbs Electric Power Fittings HDG Bolt Eyelet 125lbs
H.D.G. Bolt Eyelet
Eyelets are also called eye bolts, eye screws or eye nuts. They are available in different sizes and you can choose one that matches the needs of your application. Hot deep galvanized steel is the preferred material for eyelets due to its strength and durability.
The eyelets are mainly used in transmission lines, the dimensions resemble the eye of a needle with an opening just large enough to fit over a bolt that is inserted into it. The eyelet eye diameter can be any size between .041″ to 1.0″.
There is a coupling hub that screws onto the end of a bolt or stud with a hex shape for an Allen wrench, and this can be screwed into the large hole on the end of a bolt eyelet to connect two pieces of tubing together.
Some of the application areas of bolt eyelets include transmission power lines and telecommunication lines.
Eyelets are used in transmission line applications when a secure connection is necessary, eyelets have high tensile strength and can easily be connected to other pieces of tubing using the coupling hub. The eyelet provides electrical insulation between the equipment it is connecting and its environment.

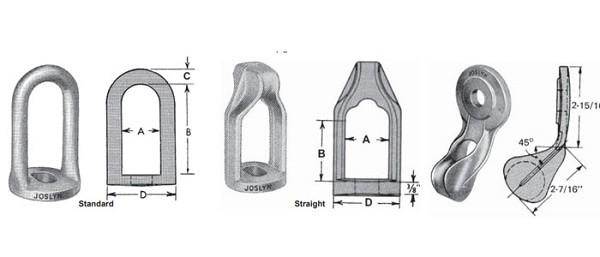

| Mounting | Bolt Size (in) | A | B | C | D | Weight /100 (lbs) |
| Bolt Hole | ||||||
| 1 1/8 x 11/16 | 5/8 | 1-1/4 | 3 | 1/2 | 2-1/4 | 78 |
| 1 1/8 x 13/16 | 3/4 | 1-1/4 | 3 | 1/2 | 2-1/4 | 70 |
| 1 x 11/16 | 5/8 | 1-5/16 | 2 | 3/8 | 2-1/4 | 130 |
| 1 1/8 x 13/16 | 3/4 | 1-5/16 | 2 | 3/8 | 2-1/4 | 125 |
Features
- High tensile strength
- Comes in different diameters
- Easy to connect with other hardware
- Safe for use on transmission lines
Packing & Delivery
