Commercial Metal Rope Thimble Round Rope 6mm To 24mm For Chain Fittings
Galvanized Carbon Steel Commercial Type Thimble
Our company has been specialized in producing carbon steel commercial type thimbles for many years and we also co-operate with other excellent factories, so the price is very competitive. We are looking forward to making business relationship with you.
Details:
1. Model: Commercial Type Thimble
2. Material: Carbon steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: From 6mm to 24mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

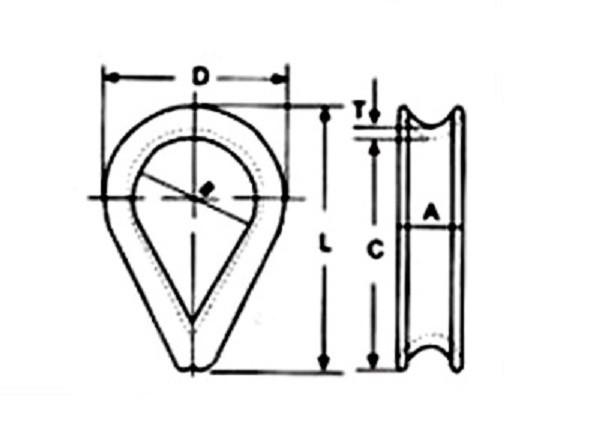

Specification:
| Size | Dimensions(mm) | WT/100PCS | |||||
| mm | A | B | C | D | L | T | kg |
| 6 | 11 | 19 | 30 | 29 | 38 | 2.5 | 1.7 |
| 8 | 13 | 21 | 35 | 30 | 45 | 2.5 | 3.4 |
| 10 | 16 | 25 | 38 | 37 | 51 | 3 | 4.4 |
| 12 | 18 | 32 | 49 | 45 | 64 | 3 | 7.3 |
| 16 | 22 | 45 | 75 | 59 | 90 | 3.2 | 15.5 |
| 20 | 25 | 49 | 81 | 67 | 102 | 4.8 | 20 |
| 22 | 32 | 55 | 89 | 78 | 114 | 4.8 | 28 |
| 24 | 33 | 59 | 99 | 82 | 127 | 5.5 | 40 |
