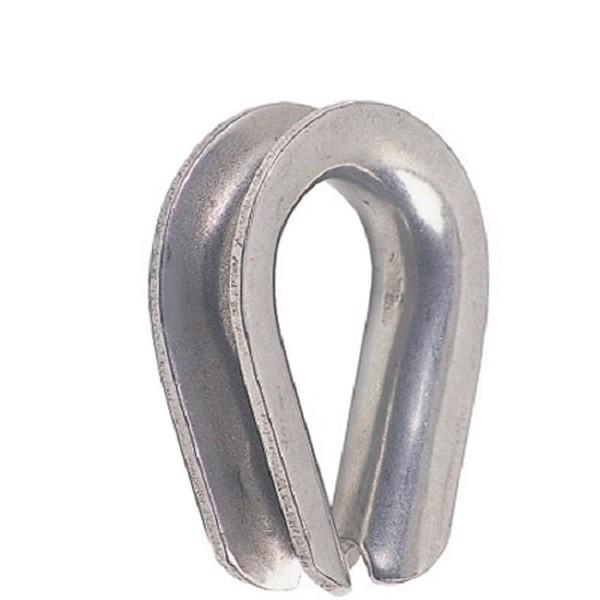

Heavy Duty Wire Rope Thimble 1/4 Inch To 1 Inch
Galvanized Extra Heavy Wire Rope Thimbles
Extra heavy wire rope thimbles are important for marine riggings. Our company has produced this product for many years and it is available in sizes ranging from 1/4 inch to 1 inch. The price is also very competitive. Welcome to contact with us.
Details:
1. Model: Extra Heavy Wire Rope Thimble
2. Material: Carbon steel, stainless steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: From 1/4 inch to 1 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| For rope diam. inches | Diamensions in inches | Weight pounds per 100 | |||||
| Overall length | Overall width | Length inside | Width inside | Overall thickness | Max.pin diam. | ||
| 1/4 | 2-3/16 | 1-1/2 | 1-5/8 | 7/8 | 13/32 | 13/16 | 7.5 |
| 5/16 | 2-1/2 | 2-13/16 | 1-7/8 | 1-1/16 | 1/2 | 15/16 | 14 |
| 3/8 | 2-7/8 | 2-1/8 | 2-1/8 | 1-1/8 | 21/32 | 1-1/16 | 25 |
| 1/2 | 3-5/8 | 2-3/4 | 2-3/4 | 1-1/2 | 27/32 | 1-7/16 | 51 |
| 5/8 | 4-1/4 | 3-1/8 | 3-1/4 | 1-3/4 | 1 | 1-5/8 | 75 |
| 3/4 | 5 | 3-3/16 | 3-3/4 | 2 | 1-1/4 | 1-7/8 | 147 |
| 1 | 6-1/8 | 4-15/16 | 4-1/2 | 2-1/2 | 1-9/16 | 2-3/8 | 291.66 |
