Stainless Steel G411 Wire Rope Thimble 1/8in
Stainless Steel G411 Wire Rope Thimble
Our company is a professional wire rope thimble manufacturer, supplier and exporter in China. Various size is available. We are looking forward to being your business partner.
Details:
1. Model: G411 Wire Rope Thimble
2. Material: Stainless steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

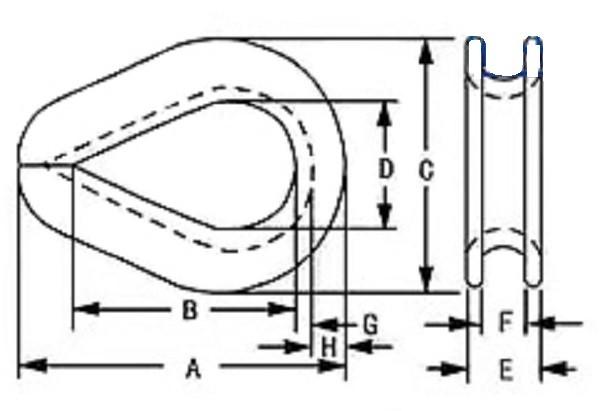

| Rope dia | Dimensions(in) | Weight 100PCS(LBS) | |||||||
| in | A | B | C | D | E | F | G | H | |
| 1/8 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 | 2.50 |
| 3/16 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 | 2.50 |
| 1/4 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 | 3.75 |
| 5/16 | 2.13 | 1.50 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 | 3.75 |
| 3/8 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 | 6.25 |
| 1/2 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 | 12.50 |
| 5/8 | 3.50 | 2.50 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 | 25.00 |
| 3/4 | 3.75 | 2.50 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 | 50.00 |
| 7/8 | 5.00 | 3.50 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 | 85.00 |
| 1 | 5.69 | 4.25 | 3.75 | 2.50 | 1.39 | 1.06 | 0.16 | 0.41 | 100.00 |
| 1-1/8-1-1/4 | 6.25 | 4.25 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.50 | 175.00 |
