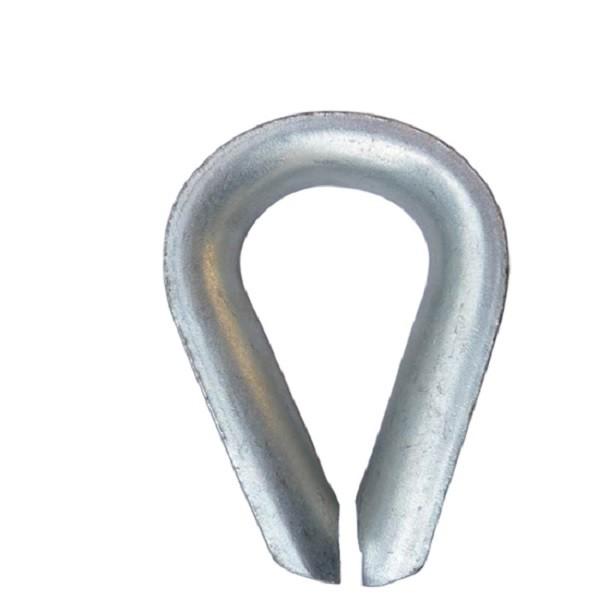

Galvanized Carbon Steel US Type Light Duty Thimble
Carbon steel US type light duty thimbles are important for marine hardware. Our company is one of the major manufacturer, supplier and exporter of this product. Welcome to contact with us.
Details:
1. Model: US Type Light Duty Thimble
2. Material: Carbon steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

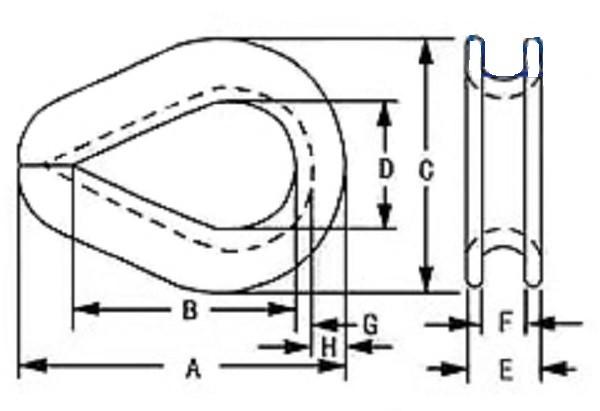

Specification:
| Rope dia | Dimensions(in) | Weight 100PCS(LBS) | |||||||
| in | A | B | C | D | E | F | G | H | |
| 1/8 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 | 2.50 |
| 3/16 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 | 2.50 |
| 1/4 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 | 3.75 |
| 5/16 | 2.13 | 1.50 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 | 3.75 |
| 3/8 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 | 6.25 |
| 1/2 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 | 12.50 |
| 5/8 | 3.50 | 2.50 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 | 25.00 |
| 3/4 | 3.75 | 2.50 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 | 50.00 |
| 7/8 | 5.00 | 3.50 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 | 85.00 |
| 1 | 5.69 | 4.25 | 3.75 | 2.50 | 1.39 | 1.06 | 0.16 | 0.41 | 100.00 |
| 1-1/8-1-1/4 | 6.25 | 4.25 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.50 | 175.00 |
