Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm

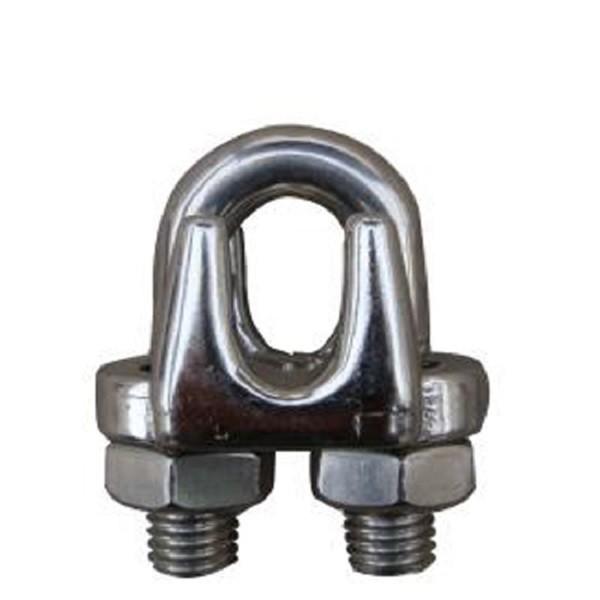

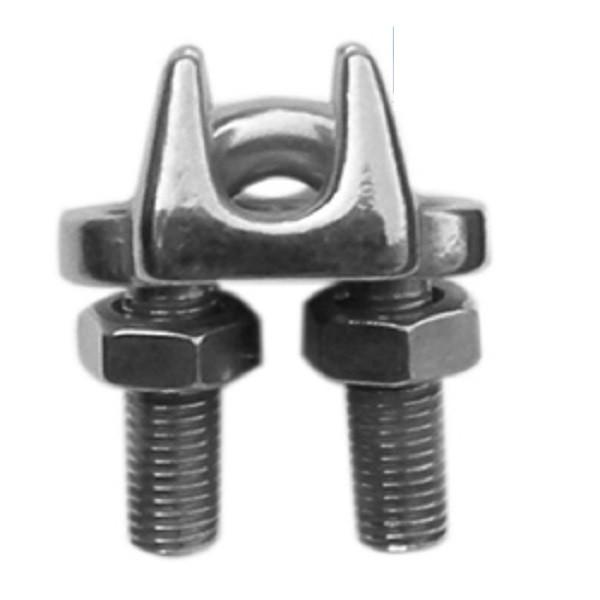

Polished Stainless Steel US Type Wire Rope Clip
Polished stainless steel US type wire rope clip are designed and made for rugged, heavy service. Our company has been specialized in producing this product for several years. And all sizes are available. We have our own factory and also cooperate with other exllent factories, so the price is very competitive. What's more, our professional sales team will offer the best service and make you feel enjoyable. Welcome to get in touch with us.
Details:
1. Standard: US type
2. Material: Stainless steel
3. Usage: Wire rope clip, marine hardware
4. Surface Treatment: Polished
5. Size: From 3mm to 76mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to
customers requirements

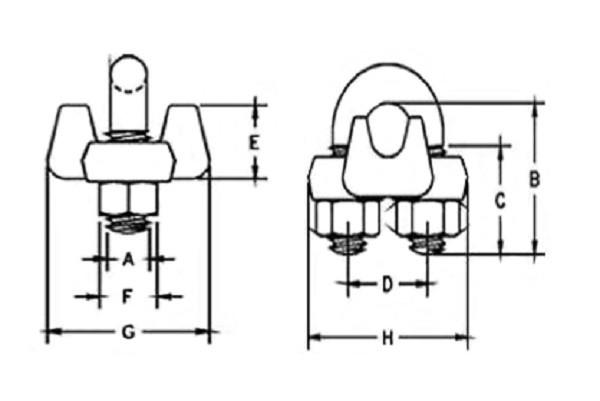

Specification:
| Size | A | B | C | D | E | G | H |
| mm | inch | mm | mm | mm | mm | mm | mm |
| 3 | 3/16 | 18 | 11 | 12 | 10 | 20 | 23 |
| 5 | 1/4 | 24 | 14 | 15 | 12 | 23 | 29 |
| 6 | 5/16 | 26 | 15 | 19 | 16 | 30 | 36 |
| 8 | 3/8 | 35 | 19 | 22 | 18 | 33 | 43 |
| 10 | 7/16 | 38 | 19 | 25 | 23 | 41 | 49 |
| 11 | 1/2 | 47 | 25 | 30 | 26 | 46 | 58 |
| 12 | 1/2 | 47 | 25 | 30 | 28 | 48 | 58 |
| 14 | 9/16 | 57 | 32 | 33 | 31 | 52 | 63 |
| 16 | 9/16 | 60 | 32 | 33 | 34 | 52 | 63 |
| 20 | 5/8 | 70 | 36 | 38 | 35 | 57 | 72 |
| 22 | 3/4 | 79 | 41 | 44 | 40 | 62 | 80 |
| 25 | 3/4 | 89 | 46 | 47 | 45 | 66 | 88 |
| 28 | 3/4 | 98 | 51 | 51 | 48 | 71 | 91 |
| 32 | 7/8 | 108 | 54 | 59 | 56 | 80 | 105 |
| 35 | 7/8 | 118 | 59 | 60 | 59 | 80 | 106 |
| 38 | 7/8 | 125 | 60 | 66 | 62 | 87 | 113 |
| 41 | 1 | 135 | 60 | 70 | 68 | 92 | 121 |
| 44 | 1-1/8 | 149 | 70 | 78 | 73 | 95 | 133 |
| 50 | 1-1/4 | 165 | 76 | 84 | 86 | 113 | 148 |
| 57 | 1-1/4 | 181 | 84 | 98 | 97 | 114 | 160 |
| 64 | 1-1/4 | 197 | 86 | 105 | 108 | 114 | 164 |
| 70 | 1-1/4 | 211 | 89 | 111 | 127 | 127 | 171 |
| 76 | 1-1/2 | 233 | 98 | 121 | 133 | 175 | 192 |
