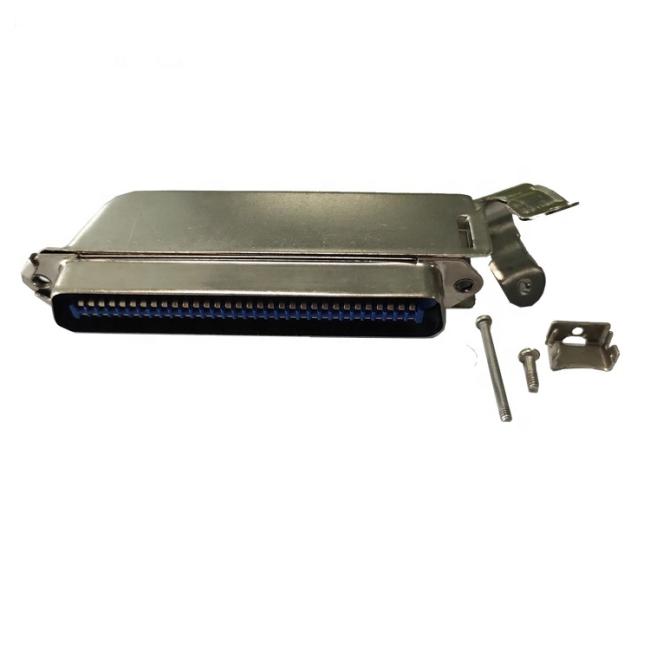

45 Degree Metal Cover 64P Champ Connectors IDC Male Plug Crimping Connector

45 degree Metal Cover 64Pin Centronic connector champ IDC Male Plug Crimping Connector for Huawei MA5600 to MA5616

Quick Details

Place of Origin: Guangdong, China

Product Category: Centronic connector

Product Line: Champ Connector

Gold plating: 1U", 3U", 5U", 10U", 15U",30U"

Number of Terminal: 64 pin

Gender: Male

Insulator Color & Material: Grey or Blue & PBT

Contact pin Material: Phosphor Bronze

Centerline: 2.16mm [0.085in]

Hood: 45 degree Metal Cover

Application: 0.5 Solid conductor Cable

Packaging & Delivery

Selling Units: Single item

Single package size: 10X3X2 cm

Single gross weight: 0.100 kg

Package Type: Vacuum Tray + Carton + PE Bag + Plastic Strip

Description:

This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector. The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The Centronics 64pin connector is arranged in two rows of pins each with 32 contacts. Usually assemble with RJ21 cable to match 64pin Female PCB Connector, application for Huwei DSLAM & Huawei M5600 to M5616.
