500 Cycles Male Or Female Waterproof Connectors Epoxy Resin/Rubber Sealing

Price Negotiable
Price: Negotiable
MOQ: 500 pcs
Delivery Time: 2 weeks
Product Description

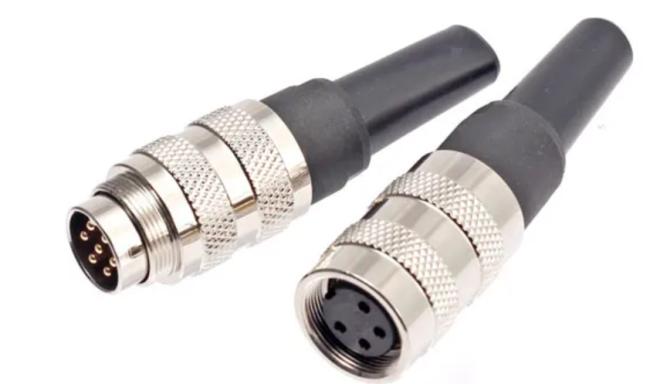

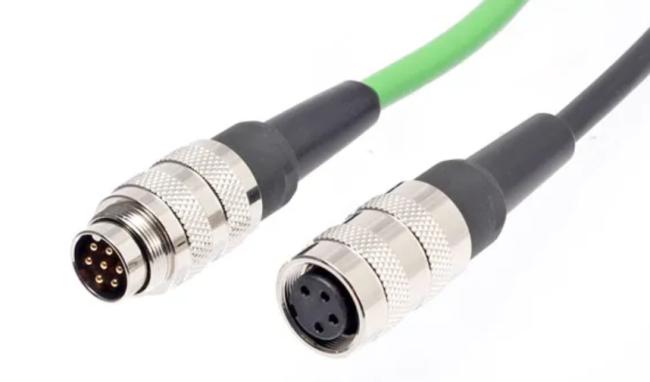

Instrument M16 Straight Male Metal Plug Crimp Type Plastic Tube Sensors M16 Female Solder Connectors



Products Description

Instrument M16 Straight Male Metal Plug Crimp Type Plastic Tube Sensors M16 Female Solder Connectors

Pins Number: 2-24 pins
Most connectors are excellent for full shielding at 360 degrees
Plug: assembly, overmolded cable type (length can be customized at will)
Socket: Front Mount Solder Type, Back Mount Solder Type and PCB board type
Products comply with IEC 61076-2-106-2012 AISG Standard
Waterproof grade: IP65,IP67

Technical parameter
Shell Material
Brass/zinc alloy nickel/brass nickel plated
Contact Material
Brass/phosphorus copper gold-plated
Sealing Material
Epoxy resin/rubber
Insulator Material
PA66
Applicable Temperature
-25℃ ~ +80℃
Wiring range
PG7:4~6mm；PG9:6~8mm
Contact Impedance
≤5mΩ
Durability
≥500 cycles
Molding Material
TPU/PVC
Waterproof Level
IP65/IP67
Execution Standard
IEC 61076-2-106-2012 AISG Standard
