China SCSI 68 Pin Male Soldering Type Connector 1.27mm Pitch Servo Automation for sale
China SCSI 68 Pin Male Soldering Type Connector 1.27mm Pitch Servo Automation for sale
China SCSI 68 Pin Male Soldering Type Connector 1.27mm Pitch Servo Automation for sale

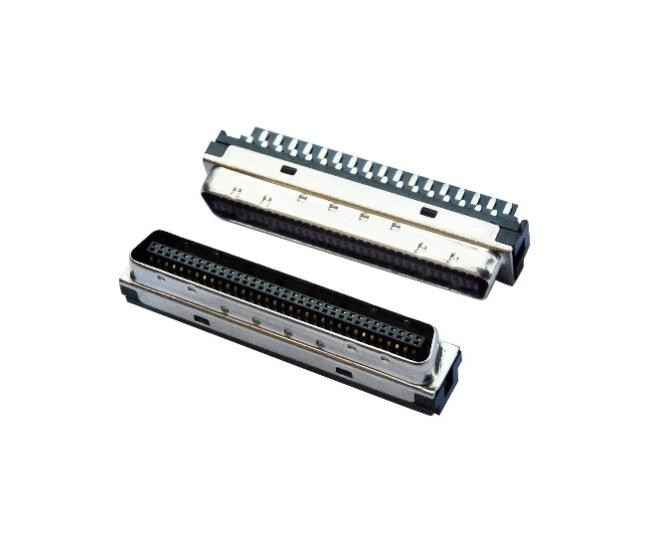

SCSI 68 Pin Male Soldering Type Connector 1.27mm Pitch Servo Automation

Price Negotiable
Price: Negotiable
MOQ: 500 pcs
Delivery Time: 2 weeks
Product Description

SCSI 68pin male soldering type connector 1.27mm pitch servo automation





SCSI 68P MALE SOLDER assembly type
terminal: Copper alloy, contact area plated 5u"
shell: SPCC, plated Ni
housing: PBT+30%G.F. black
cover: PBT+30%G.F. black
Electrical characteristics: a) Contact Current Rating: 1 Amp
b) Dielectric Withstanding Voltage:500V AC
c) Insulation Resistance: 500MΩ/Min
d) Contact Resistance: 35mΩ/Max
e) Operation Temperature: -20℃～+85℃
Application: Industrial equipment, motion control card, automation, robot;
Environmental standards: RoHS compliant
