China 22 Pin 917989-6 178798-6 175110-6 Female Wire Harness PA66 Automotive Connector Housing for sale

22 Pin 917989-6 178798-6 175110-6 Female Wire Harness PA66 Automotive Connector Housing

Price Negotiable
Price: Negotiable
MOQ: 2000 pcs
Delivery Time: 2 weeks
Product Description

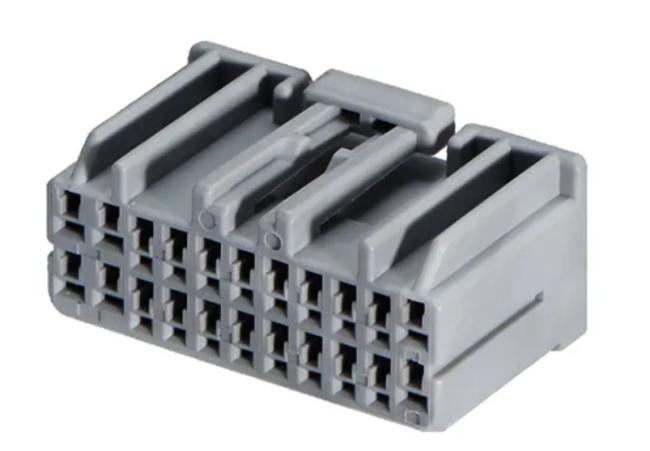

22 Pin 917989-6 178798-6 174515-6 368135-6 175110-6 Female Wire Harness PA66 Automotive Connector Housing





        PRODUCT DESCRIPTION



Part Number  30050-22Y-6
Compatible with TE P/N :  917989-6, 178798-6, 174515-6, 368135-6, 175110-6
Nos. of Position :  22
Pitch (mm) :  3.0, 3.50
Mating Tab Width (mm) :  1.0, 1.8
Cable Exit Angle :    180°
Number of Rows :  2
Sealable  No
Colour :  Grey
Body Material :  PBT / PA66
Current Rating :  5A+10A
Operating Voltage (VDC) :  12
Working Temperature: :  -40°C-125°C
Connector Application :  Wire-to-Board, Wire-to-Device, Wire-to-Wire Wire to Board  / Signal Circuit
UL Flammability Rating :  UL 94-HB
