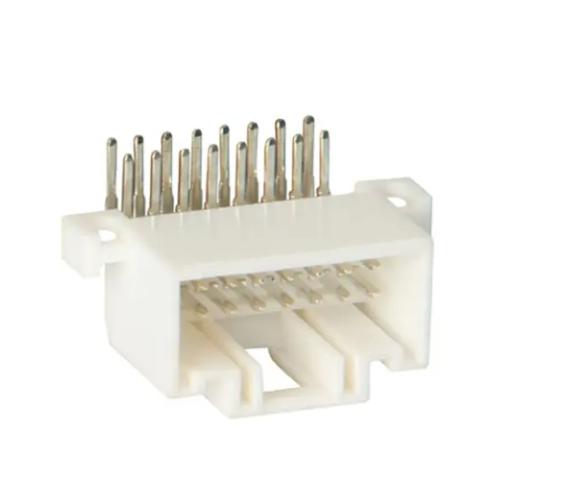

7222-1368 YZK 16 Pin Cable To PCB Board Automotive Wire Connectors 2.54mm
Price:
Negotiable
MOQ:
2000 pcs
Delivery Time:
2 weeks
Product Description
7222-1368 YZK 16 Pin Cable to PCB Board Automotive Car Wire Connector PBT white dual row
| PRODUCT DESCRIPTION |
| Part Number | 25413-16AW-1 |
| Compatible with YAZAKI P/N : | 7222-1368 |
| Nos. of Position : | 16 |
| Pitch (mm) : | 2.54 |
| Mouting Type: | Horizontal / 90° |
| Number of Rows : | 2 |
| Sealable | No |
| Colour : | White |
| Body Material : | PBT Resin |
| Contact Material: | Copper Alloy, Tin plated |
| Tab Width (mm) : | 1.0 |
| Tab Thickness (mm) : | 0.64 |
| Current Rating : | 5A |
| Operating Voltage (VDC) : | 12 |
| Working Temperature: : | -40°C-125°C |
| Connector Application : | Wire to Board (Printed Circuit Board PCB) / Signal Circuit |
| UL Flammability Rating : | UL 94-HB |
