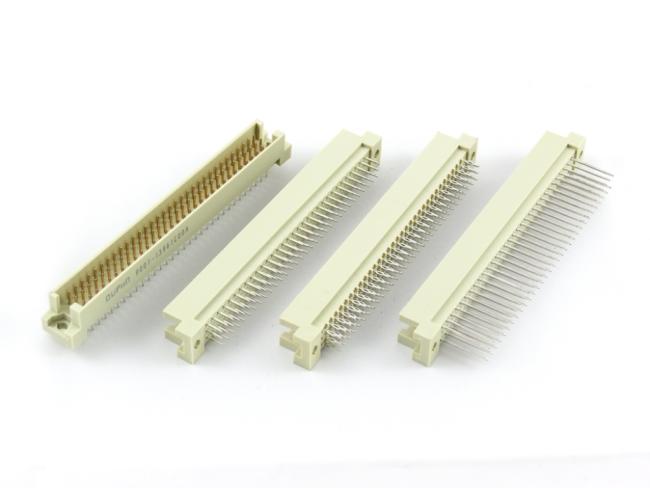

R Type Din 41612 Connectors 32pin 64pin 96pin Male Connector Press Fit ERNI Equivalent
Price:
Negotiable
MOQ:
1000 pcs
Delivery Time:
2 weeks
Product Description
Din 41612 R type 32pin 64pin 96 pin male connector press fit ERNI equivalent
Material and plating:
Housing: PBT, UL94V0, beige or gray;
Contact: Brass;
Lock: Phosphor bronze;
Contact area plating Gold plated, and tin or gold flash plated on soldering area,
Electrical characteristics:
Current rated: 2A;
Dielectrical withstanding voltage: AC 1000V for 1 minute;
Insulation resistance: 10MΩ, min at DC 500V;
Contact resistance: 10Mω max at DC 100mA;
Operating temperature: -55 degree to 125 degree;
RoHS compliant;
