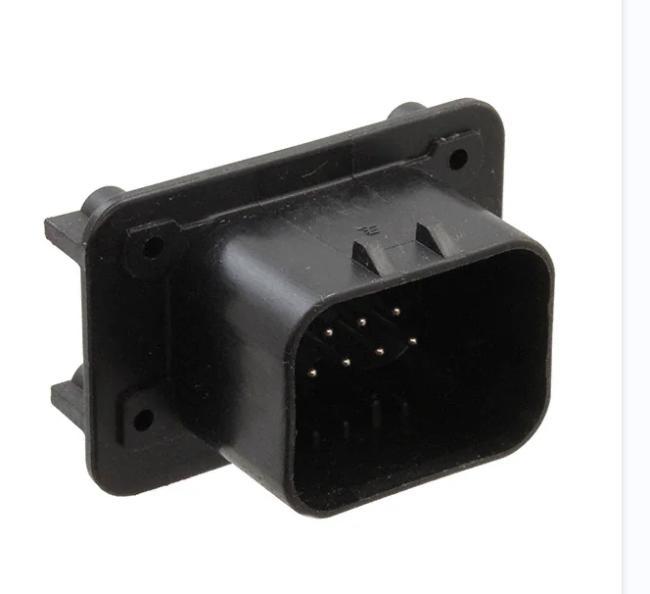

AMPSEAL 14pin 4.0mm Pitch Right Angled Male Header Automotive Connectors 776266 776267
Price:
Negotiable
MOQ:
500 pcs
Delivery Time:
2 weeks
Product Description
AMPSEAL 14pin 4.0mm pitch right angled male header PCB type 776266 776267 automotive ECU
DESC:
Material:
Plastic body: PBT+GF, black;
Gasket: silicone;
Contact: brass, surface plated with tin or gold, bottom nickel plated;
Mount type: screw mounting;
Mated with the housing of 776273 or equivalent;
RoHS compliance;
Operating temperature: -40 degree to 105 degree;
Rows: 3 rows;
Rated current: 8-10A, based on the wire gauge;
