DIP Single Double Rows Au Flash 2.54mm Pitch Female PCB Connector PC104 PA6T
2.54mm pitch connector DIP single double rows female header pin header 2.54mm PC104 PA6T black tin gold plated
| Pitch: | 2.54MM | Height: | 8.5MM |
|---|---|---|---|
| Finish: | Au Flash | Available Pin: | 02P To 40P |
| Color: | Black | Pin Lenght: | 3MM TO 20MM |
| High Light: |
Au Flash Pin Female Header,2.54MM Pitch Pin Female Header,1*XXP Terminal Female PCB Connector |
||
Female Header Right Angle straight Black Insulation Terminal Gold driverless technology PCB Control board
-
Operation Temperature -40°C to 105°C Contact Material Phosphor Bronze Contact Plating AU over Ni Insulator Material PA9T+30％GF UL94V-0 Current Rating 3.0AMP -
female connector:
1.product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2.product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.
3.scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

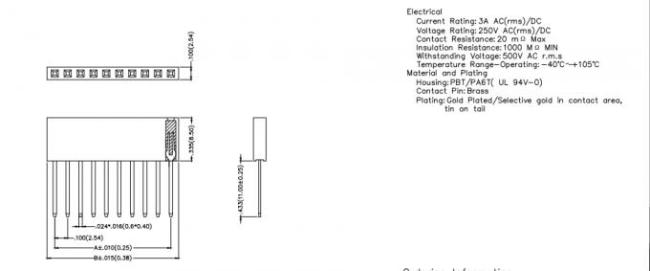

- Drawing
