54KW/73HP Hydraulic Dump Truck 5 Tonne Tipper Truck In Narrow Spaces
Product parameters of 5 Ton Mining Dump Truck

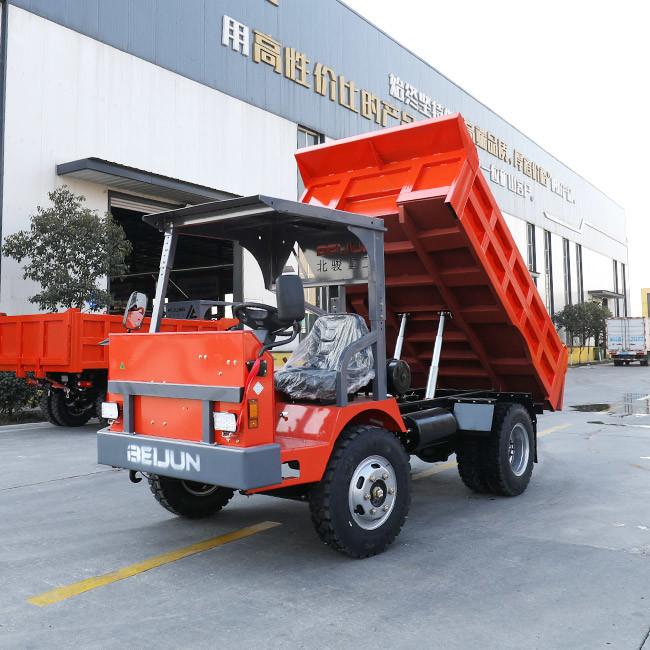

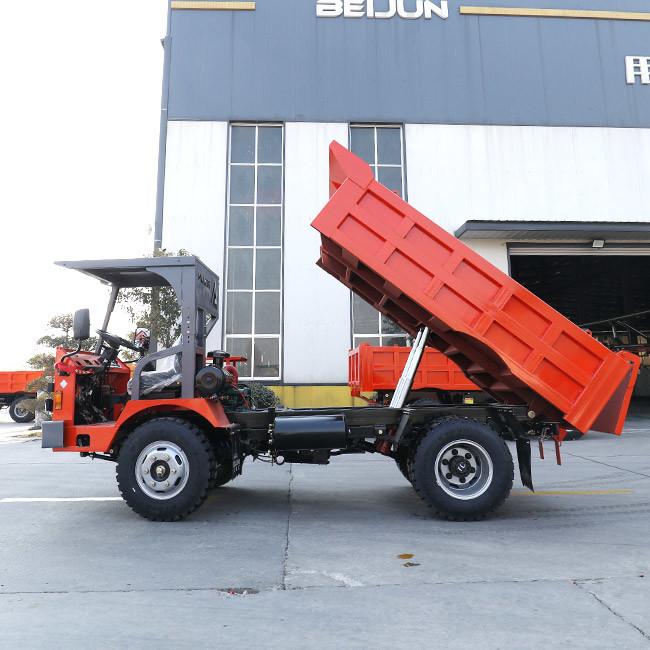

Compact and Agile Design: The Beijun underground tunnel dump truck boasts a compact and agile design, featuring a small turning radius and a specially designed cab, suspension frame, and cargo compartment. This allows it to maneuver with ease in narrow spaces, such as underground roadways and ramps.
Enhanced Safety Features: The dump truck is equipped with improved lamps and electrical components that are waterproof and moisture-proof, as well as specialized anti-slippery tires. These features enhance its obstacle-crossing capability and ensure high safety in the underground environment, which can be dangerous due to poor lighting, slippery surfaces, and other hazards.
Powerful Performance: The Beijun underground tunnel dump truck is powered by a robust engine with large torque, excellent grade, and starting performance. This enables it to transport heavy loads efficiently in the underground environment, where the terrain can be challenging.
High Bearing Capacity and Durability: The dump truck is designed based on mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. Moreover, it is built with durable materials and components, ensuring its longevity and reliability in harsh underground conditions.
| Model | UQ-5 |
| Engine Model | FAW - 4DW92-73 |
| Engine Power | 54KW/73HP |
| Transmission Model | WANLIYANG 530 |
| Transmission Gear | 5 Forward Gear, 1Back Gear,Rear High Speed Controller |
| Drive Mode | 4x2 |
| Front Axle Model | 1069 |
| Rear Axle Model | 1069 |
| Tire Model | 700x16 Line Tire, Rear Double Tyre One Side, |
| No.of Bottom Spring Plate | Front 10 PCS, Rear 10 PCS, Spare 6PCS |
| Dimension of Bottom Spring Plate | Length 70mm, Width 100mm |
| Size of the Bucket:Length×width×height | U type Bucket 2800mm*1600mm*550mm |
| Type of Bucket | |
| Thickness of Bucket Steel Plate | bottom 8mm side 6mm |
| Unloading Type | Hydraulic Double Top Dump |
| Steering Type | Hydraulic power steering |
| Braking Type | Air Brake |
| Cabin | Canopy with Glass and Rain Bush |
| Driving Position | Left Hand Drive |
| Cooling sytem | Standard Water Cooling System |
| Loading Capacity | 6 Tons |
