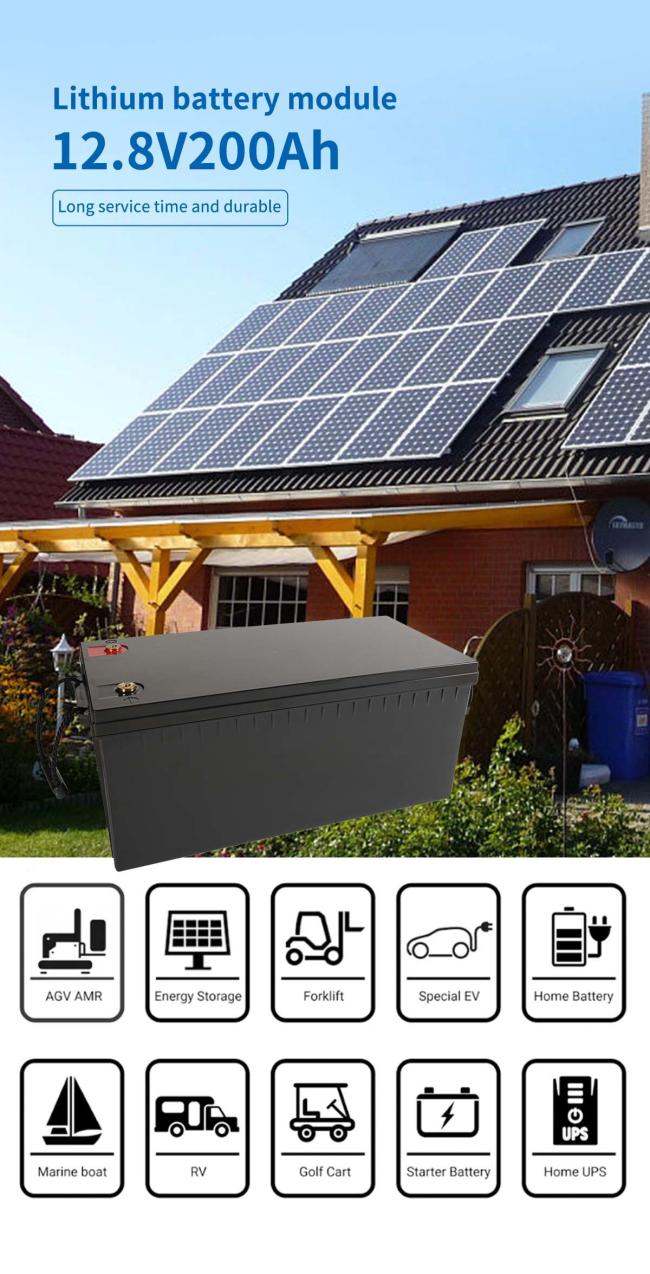

OEM 2.56kWh Lithium EV Battery Lifepo4 Lithium Ion Battery 200ah 12.8V

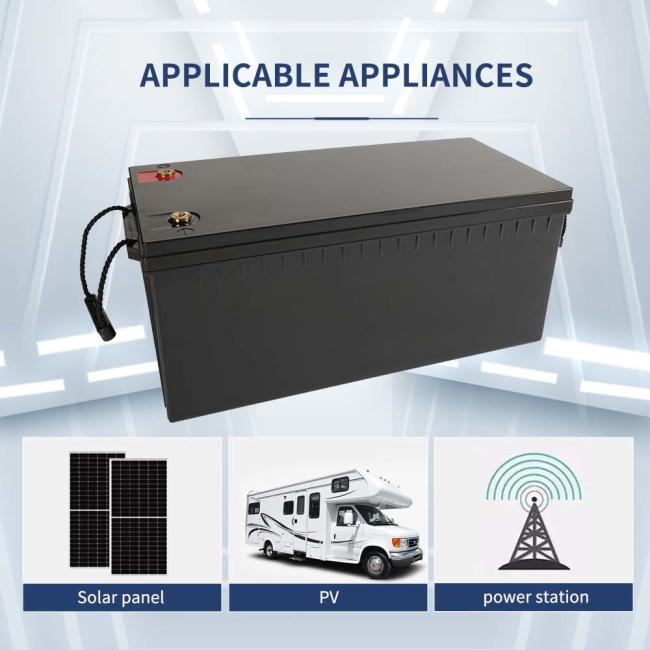

This product is an advanced product developed in response to the current communication operators' requirements for new backup power supplies under the new communication trend. It has multiple characteristics such as integration, miniaturization, light weight, intelligence, standardization, and environmental protection. It can be widely used in Indoor distribution station, integrated base station, edge station, microcell station, FTTX equipment, remote radio frequency, distributed power supply and other communication fields, can also be used for access network equipment, remote switching office, mobile communication equipment, transmission equipment, mobile Emergency communication vehicle, traffic police fire emergency communication system, satellite ground station and microwave communication equipment, household energy storage and other fields.





Features

1. No memory effect. Lithium ion batteries do not have the so-called memory effect of nickel cadmium batteries, so do not discharge them before charging them, as nickel cadmium batteries do. It can also be charged at any time, regardless of the battery power.
2. Long service life. Under normal working conditions, it can generally be fully charged and discharged for more than 3000 times.
3. Lithium ion batteries have strong adaptability to high and low temperatures. It can be used in an environment of - 10 ℃ to 40 ℃. However, as far as possible, to prevent charging in high temperature environments, excessive temperatures can exacerbate battery loss and shorten battery life.

4. Green and environmental protection. Due to the fact that batteries do not contain heavy metal elements such as cadmium, lead, and mercury, there will be no environmental pollution during use and production, and they can be safely used.
5. High storage energy density and lighter weight. The storage energy of lithium ion batteries has currently reached 460-600Wh/kg, about 6-7 times that of lead acid batteries. The weight of lead acid in the same volume is only 1/5 of that of lead acid.
6. Small self discharge can be stored for a long time.





Nominal capacity	200Ah
Nominal Voltage	12.8V
Rated total energy	2.56kWh
Charging maximum voltage	14.6V
Charging method	CC, CV
Charge up to current	0.02C
Charging time	20-22H
Single highest battery	3.6V
Minimum voltage per cell	2.5V
Overcurrent protection	15A
Short circuit protection	Yes
Weight	20Kg
Dimensions (L*W*H)	522x240x218mm
Operating temperature	0℃~50℃
Storage temperature	-10℃~45℃
Cooling method	Natural cooling
Capacity	50Ah / 100Ah
Nominal voltage	3.2V
Charge/discharge voltage range	2.5 ~3.65
Weight	1100士30g(50Ah) 1900士30g(100Ah)
Mass energy density	145Wh/kg
Volumetric energy density	308Wh/L
AC internal resistance	0.27mΩ <R <0.4 mΩ
DC internal resistance	0.5mΩ <R < 1 mΩ
Normal temperature cycling performance	3000 Cycles>80%
High temperature cycling performance	1200 Cycles>80%







FQA



1. How long will a 200Ah lithium battery last?
If you have a 200ah battery, it can supply 20 continuous amps for 10 hours or 10 amps for over 20 hours. The term voltage in a battery refers to the difference in electric potential between the positive and negative terminals of a battery.



2. Is 12.8 V same as 12V?
Although it is 12V (12.8V nominal) battery, the LiFePO4 battery is using different technology from the conventional battery (Lead acid).



3. How do I know if my lithium-ion battery is still good?
Therefore, you can check the battery with a voltmeter or multimeter to know if it's dead or not. It is wise to replace the battery once you notice that the voltage is lower than the one listed on the battery by the manufacturer.



4. How long does a 2.58 kWh lithium battery last?
2.58kWh battery means you can run 2580W (2.58kW) of power for an hour. You can run 1.29kW of power for 2 hours.
