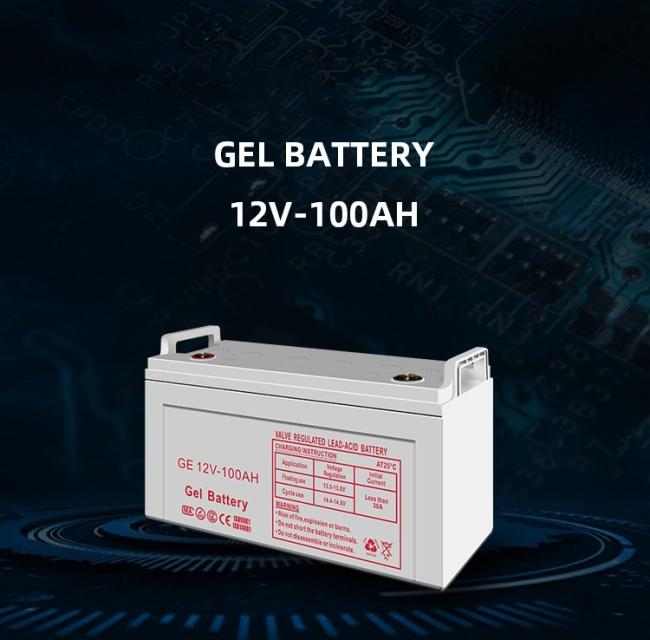

12V 100AH GEL Storage Rechargeable Pure Lead UPS Battery For Solar Power System

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 7-15working days
Brand: KVOU
Product Description

12V 100AH GEL Storage Battery Lead Rechargeable Pure Lead Battery UPS Battery For Solar Power System





Product Paramenters
Nominal Voltage
12V
Nominal Capacity(10HR)
100AH
Dimension
Length
406± 3mm (16.0 inches)
Width
174± 2mm (6.85 inches)
Container Height
208 ± 2mm (8.18 inches)
Total Height (withTerminal)
233 ± 2mm (9.17 inches)
Approx Weight
Approx 30 Kg (66.14Ibs)
Terminal
T11
Container Material
ABS
Rated Capacity
107.2 AH/5.36A
(20hr ,1.80V/cell,25℃/77℉)
100.0 AH/10.0A
(10hr,1.80V/cell,25℃/77℉)
87.7 AH/17.5A
(5hr,1.75V/cell,25℃/77℉)
79.5 AH/26.5A
(3hr,1.75V/cell,25℃/77℉)
64.6 AH/64.6A
(1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current
1200A (5s)
Internal Resistance
Approx 4.9mΩ
Operating Temp.Range
Discharge : -30~50℃ (5~122℉)
Charge : 0~40℃ (32~104℉)
Aircraft signal Storage : -30~40℃ (5~104℉)
Nominal Operating Temp. Range
25 ±3℃ (77 ±5℉ )
Cycle Use
Initial Charging Current less than 30.0A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use
No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃

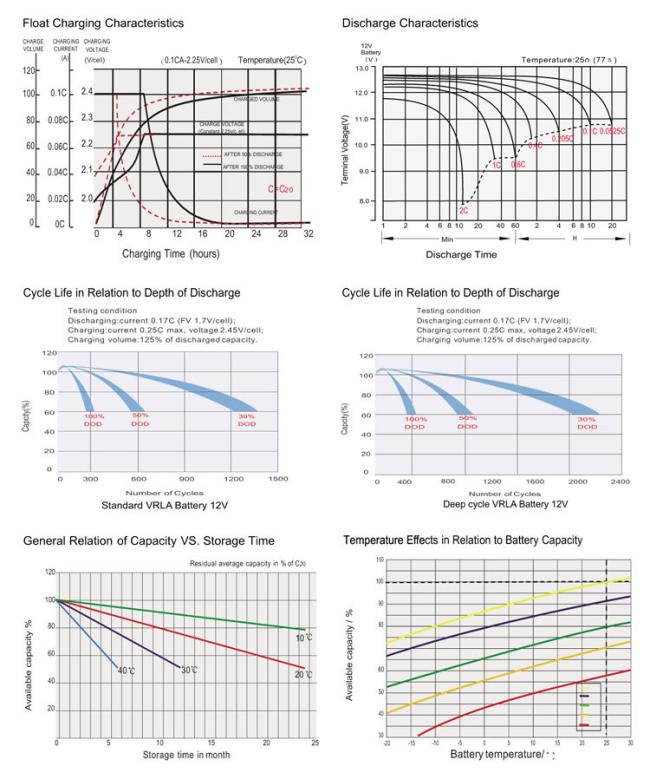

Capacity affectedby Temperature
40℃ (104 ℉)103%
25℃ ( 77 ℉ )100%
0℃ ( 32℉ ) 86%
Self Discharge
Techfine batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher
temperatures the time interval will be shorter.



FAQ:



Q: What causes a battery to drain?
A:“Electrical devices or lights left running, a defective charging system or alternator, and extreme weather are some common reasons but maybe it's just time to get a new battery.”



Q: Can a battery stop working after 2 years?
A: Batteries gradually deteriorate until they can no longer provide enough power to start an engine. This wear time could take three to five years and a vehicle's usage pattern is one factor contributing to the rate at which a battery will age.


Q: How many batteries are needed for 10kW?
A: In conclusion, a 10kW solar system typically requires a battery bank with a capacity of 20-30kWh, which can require between 100-150 batteries with a capacity of 200Ah each. However, it is important to consult with a professional to determine the exact number of batteries required for your specific solar power system.



Q: How long will a 5kw battery last?
A: Approximately ten hours. Typically, a 5kWh solar battery can last approximately ten hours when you're only running a few appliances, such as your TV, fridge, and even a few lights. However, it will drain quickly if you add the use of heavy-duty appliances, such as air conditioners.
