Pure Sine Wave 220V 110V 1KVA 3KVA 10KVA 15KVA UPS Power Supply Online 2KW 10KW

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 7-15working days
Brand: KVOU
Product Description

Pure Sine Wave 220V 110V 1KVA 2KVA 3KVA 10KVA 15KVA UPS Power Supply Online 2KW 5KW 10KW UPS

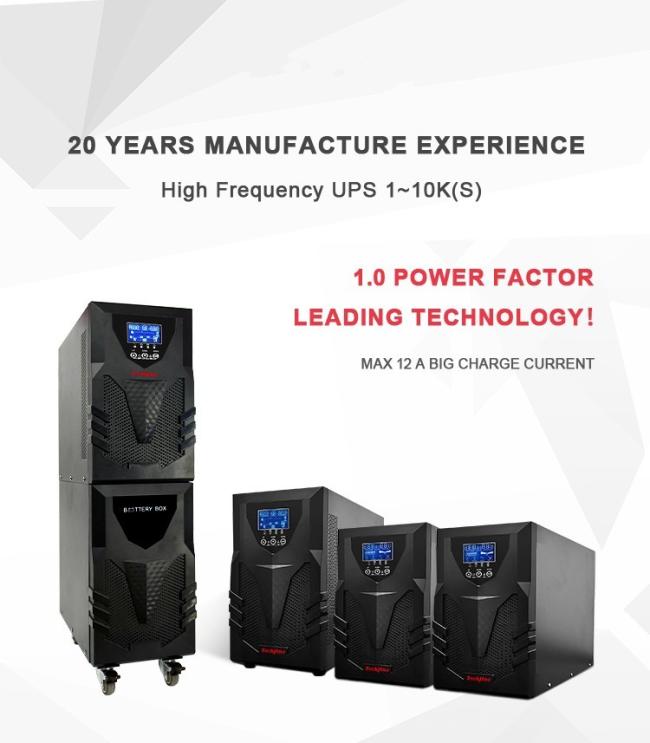

High frequency UPS1~10KVA(S)

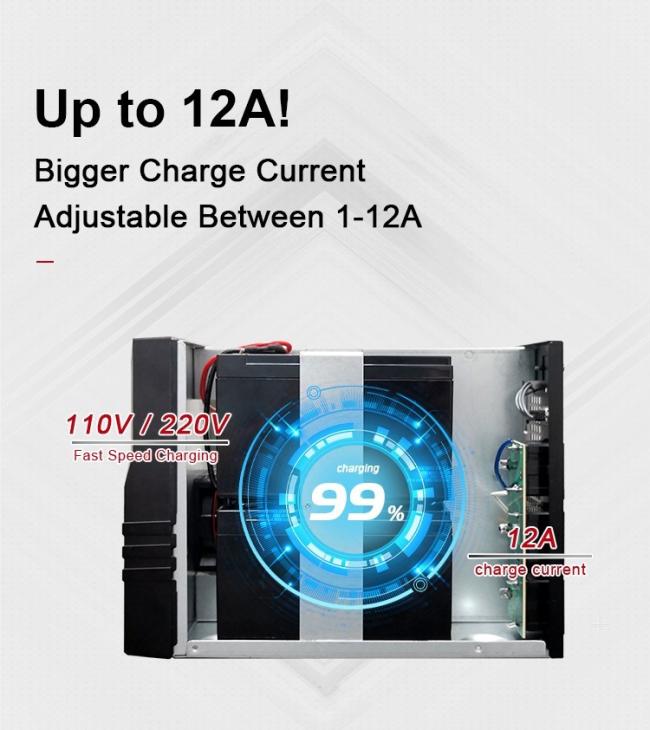

* Max 12 A big charge current *1.0 output power factor *Up to 95.5% high efficiency

* Adjustable Input Voltage 208V/220V/230V/240V
* Pure Sine Wave Output,True Onlie Zero Transfer Time

* Shipping cost saving with its compact structure and small dimension *New topology with high power desity circuit is better for noise and surge protections.

Product Parameters
Models
CQ1K (S)
CQ2K (S)
CQ3K (S)
CQ6K (S)
CQ10K (S)
Phase
Single-phase
Capacity
1K VA / 1KW
2K VA / 2KW
3KVA /3KW
6KVA / 6KW
10KVA / 10KW
Input
Voltage range
110 - 300VAC
Frequency range
50HZ/60HZ
Power factor
1.0
Output


Output voltage
220VAC±1% (208, 220, 230, 240 adjustable on LCD screen), 110VAC±1% Optional
Frequency range (battery mode)
50 Hz (60HZ selectable)± 0.25 Hz
Transfer
time
0ms
Wave form
Pure sine wave
Battery
Standard
Battery model
12V / 7AH(Standar) 12V /9AH(Optional)
Quantity/DC Voltage
2PCS/24VDC
4PCS/48VDC
6PCS/72VDC
12PCS/144VDC
16PCS/192VDC
Max. charging current
1.0A (Maximum)
1A, 2A, 3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A adjustable
Long-run
Battery model
Depends on the users
DC Voltage
36VDC
72VDC
96VDC
192VDC
192VDC
Max. charging current
1A, 2A ,3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A adjustable
LCD or LED display
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Control management

Smart RS-232,SNMP optional
