4021 Ss Ro Membrane Housing Side Port Practical Ss Cartridge Filter Housing
Working Principle of membrane housing
Stainless steel membrane housing is an essential part of the reverse osmosis device. Its length matches the number of RO membrane, producto's inside and outside are polished, beautiful and practical, working pressure reaches the RO system operation requirements.
Technical Parameters of membrane housing
8’’ Membrane Housing-VC-300PSI/600PSI-For Industry
Side port, with qty. of 2~8 pcs
SS retaining ring closure
Max working pressure: 300PSI/600PSI
Max working temperature: 90 ℃
Housing Material: SS304/316L
End cap material: SS 304/316L
Adapter: SS304/316L
O-ring material: EPDM, with NSF certificate
Finish: Mechanical polishing (320 mesh, Ra<0.6)
F/C port:Victaulic
Permeate port: NPT/BSP female thread
Model: for 8040 , from 1~6 element

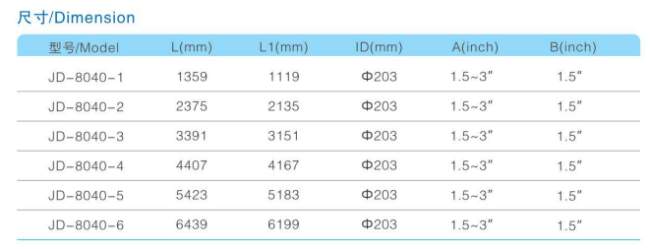

Parameter List

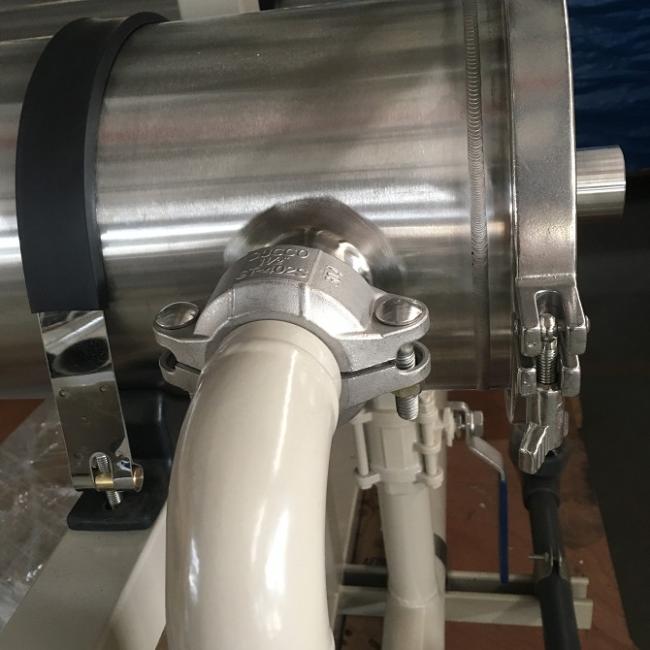

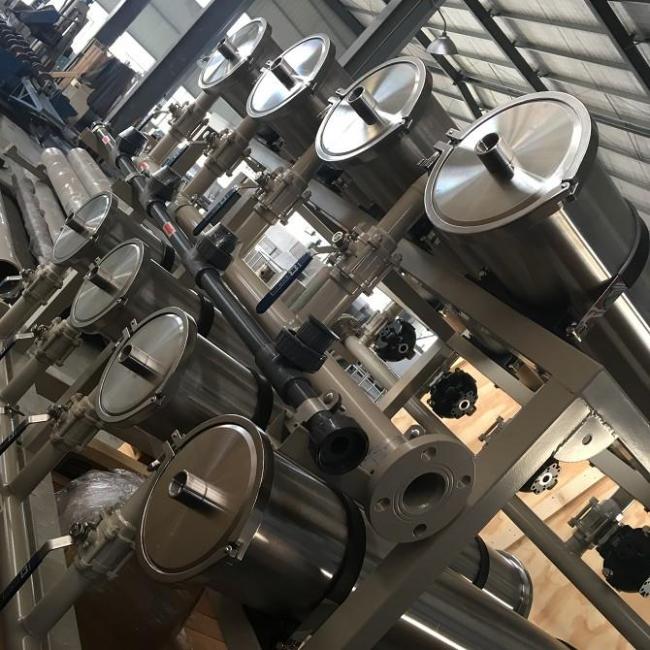

Porudct Picture
Package& shipment
| size | package type | suggested shipment | delivery time |
| 4inch | carton box with protection | LCL/FCL/AIR SHIPPING | 10-20DAYS |
| 8inch | carton box with protection | LCL/FCL/AIR SHIPPING | 10-20DAYS |
| special long models | carton box with protection | FCL | 10-20DAYS |
