Industry 4 Inch Membrane Housing Ro 1 Core 2 Cores 4040 For Food
Main performance characteristic
1. 4-inch RO membrane housing 1 core , 2 cores , 3 cores, 4 cores , etc.
2. The membrane housingt tube is divided into tube , two kinds of seamless pipe.
The seam automatic welding work involved forming, weld uniform, smooth, both inside and
outside surface for mirror processing. Pressure test before delivery, pressure up to 16 kg;
Seamless tube pull with forging stock directly, uniform wall thickness, not easy to leak,
do mirror processing, internal and external surface before delivery pressure test, pressure up to 25 kg.
3. In and out of nozzle connection with side in side out, side in side out two;
Specifications have 6 x4 points and 4 x4 points two kinds.
4. The head material is ABS, stainless steel.
Product Discription
4’’ Membrane Housing-For Industry-1000PSI
Side port,Qty:2-8pcs
Max working pressure: 1000PSI
Max working temperature: 90 ℃
Housing Material: SS304/316L
End cap material: SS 304/316L
Adapter: SS304/316L
O-ring material: EPDM, with NSF certificate
Finish: Mechanical polishing (320 mesh, Ra<0.6)
F/C port: Victaulic
Permeate port: NPT/BSP female thread
Model: for 4021/4040 , from 1~3 element
Parameter List
| Model | L(mm) | L1(mm) | ID(mm) | A(inch) | B(inch) |
| JD-4021 | 681 | 533 | 102 | 1-1.5" | 1/2" |
| JD-4040-1 | 1164 | 1016 | 102 | 1-1.5" | 1/2" |
| JD-4040-2 | 2180 | 2032 | 102 | 1-1.5" | 1/2" |
| JD-4040-3 | 3196 | 3048 | 102 | 1-1.5" | 1/2" |

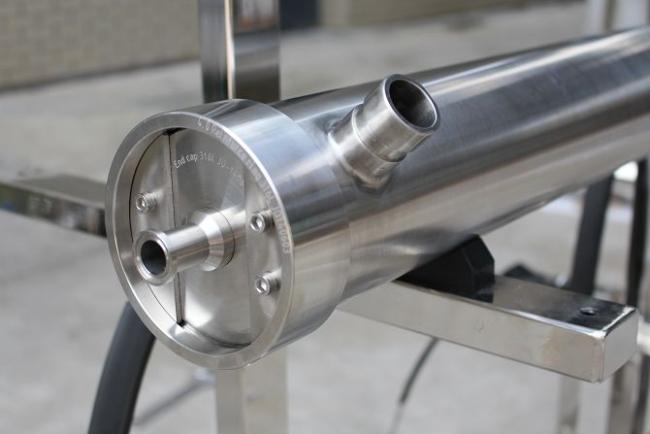

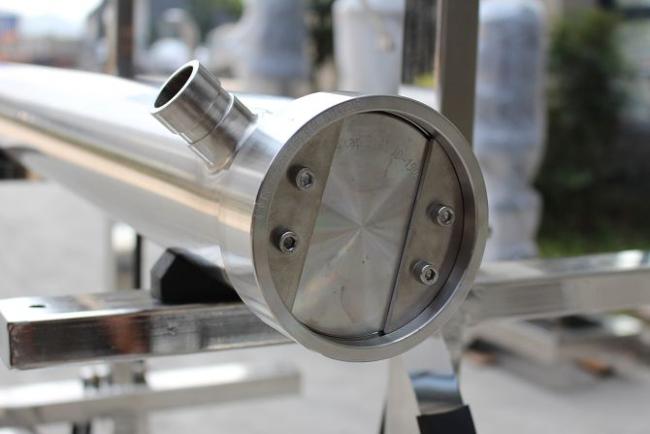

Product Picture
Package & shipment
LCL/FCL/AIR SHIPPING
Our Services
1. Your inquiry related to our products information or prices will be replied within 24 hours.
2. We are experienced in products, and we can communicate with you in English fluently. We would like to be your customized product manager.
3. OEM&ODM services, we would like to design and develop the specified products together with you.
4. All of your confidential information will be under good protection.
5. We are granted with all kinds of certifications as below:
