Side Port Ss Micron Filter Housing TC Closure 4040 RO Membrane Housing
Price:
USD20.00-500.00
MOQ:
1-200 pieces
Delivery Time:
15-30work days
Brand:
JIADUN/OEM
Product Description
Discription
4’’ Membrane Housing-For Sanitary-300PSI
Side port, Stainless Steel Tri-clamp closure
Max working pressure: 300PSI
Max working temperature: 90 ℃
Housing Material: SS304/316L
End cap material: SS 304/316L
Adapter: SS304/316L
O-ring material: EPDM, with NSF certificate
Finish: Mechanical polishing (320 mesh, Ra<0.6)
F/C &Permeate port:Tri-Clamp ferrule
Model: for 4021/4040 , from 1~3 element
Parameter List
| Model | L(mm) | L1(mm) | ID(mm) | A(inch) | B(inch) |
| JD-4021 | 638 | 533 | 102 | 1-1.5" | 1" |
| JD-4040-1 | 1120 | 1016 | 102 | 1-1.5" | 1" |
| JD-4040-2 | 2136 | 2032 | 102 | 1-1.5" | 1" |
| JD-4040-3 | 3152 | 3048 | 102 | 1-1.5" | 1" |

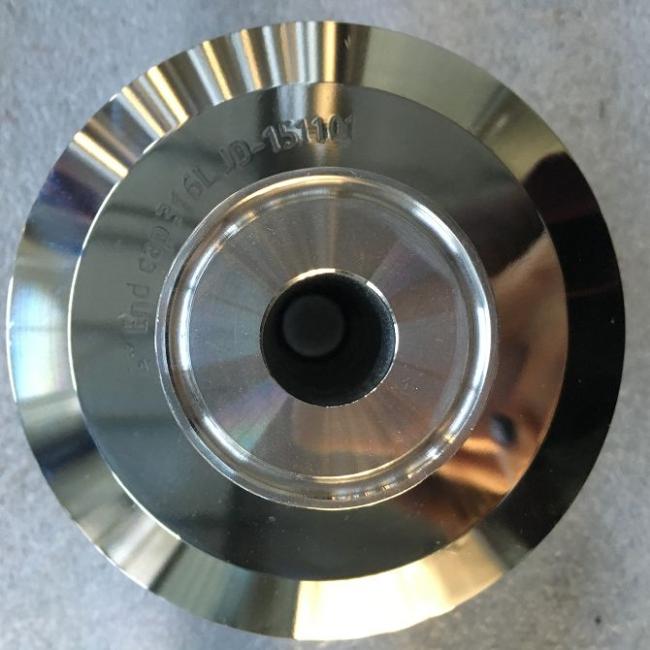

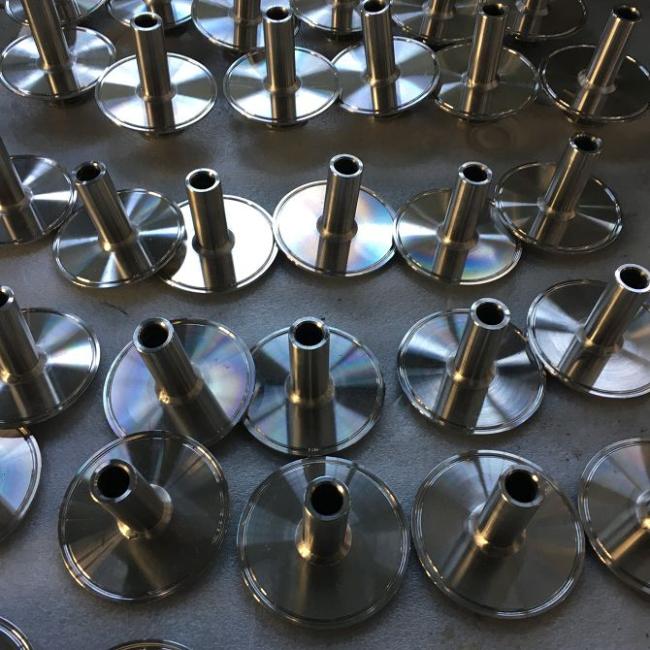

Product picture
