SS316L Water Cartridge Filter Housing OEM Stainless Steel Filter Housing
Price:
At least USD50.00
MOQ:
1 pieces
Delivery Time:
15-30work days
Brand:
JIADUN/OEM
Product Description
SS Water Filter Cartridge Housing V-Band Clamps
Discription
Cartridge filter housing -V clamp
1. Material:SS304, SS316L.
2. Max working pressure 100 Psi.
3. V-clamp closure, or with SS cup and spring assembly.
4. Polished external surface.
Dimension
| Model | A (mm) |
B (mm) |
C (mm) |
ID (mm) |
E (mm) |
F (mm) |
Inlet/ Outlet |
Drain |
| JD1-Φ170x3X10” | 75 | 180 | 505 | Φ170 | Φ216 | 230 |
1”; - 1 1/2” |
1/4";1/2” |
| JD1-Φ170x3X20” | 75 | 180 | 800 | Φ170 | Φ216 | 230 |
1”; - 1 1/2” |
1/4";1/2” |
| JD1-Φ170x 3X30” | 75 | 180 | 1050 | Φ170 | Φ216 | 230 |
1”; -2” |
1/4";1/2” |
| JD1-Φ200x 5X10” | 75 | 180 | 560 | Φ200 | Φ248 | 260 |
1”; -1 1/2” |
1/4";1/2” |
| JD1-Φ200x 5X20” | 75 | 180 | 810 | Φ200 | Φ248 | 260 |
1”; -1 1/2” |
1/4";1/2” |
| JD1-Φ200x 5X30” | 75 | 180 | 1060 | Φ200 | Φ248 | 260 |
1”; -2” |
1/4";1/2” |
| JD1-Φ200x 5X40” | 120 | 220 | 1360 | Φ200 | Φ248 | 260 |
1”; -2” |
1/4";1/2” |
| JD1-Φ250x 7X10” | 120 | 220 | 620 | Φ250 | Φ310 | 310 |
1 1/2” ; - 2” |
1/2" |
| JD1-Φ250x 7X20” | 120 | 220 | 870 | Φ250 | Φ310 | 310 |
1 1/2”; -2” |
1/2" |
| JD1-Φ250x 7X30” | 120 | 220 | 1120 | Φ250 | Φ310 | 310 |
1 1/2”; -2 1/2” |
1/2" |
| JD1-Φ250x 7X40” | 120 | 220 | 1370 | Φ250 | Φ310 | 310 |
1 1/2”; -2 1/2” |
1/2" |

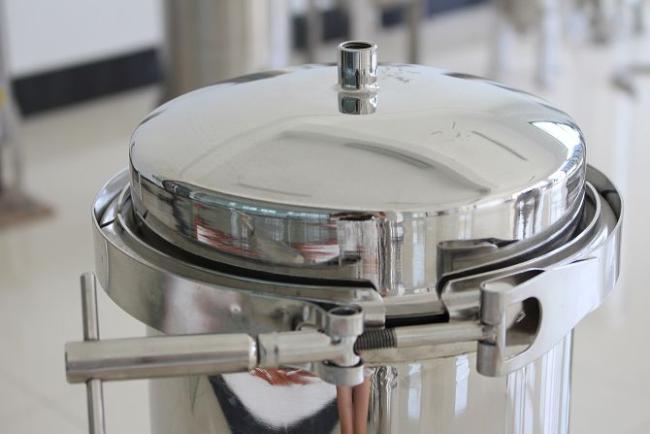

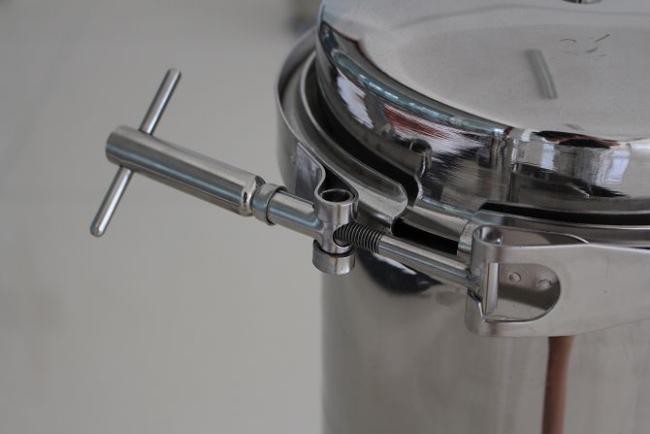

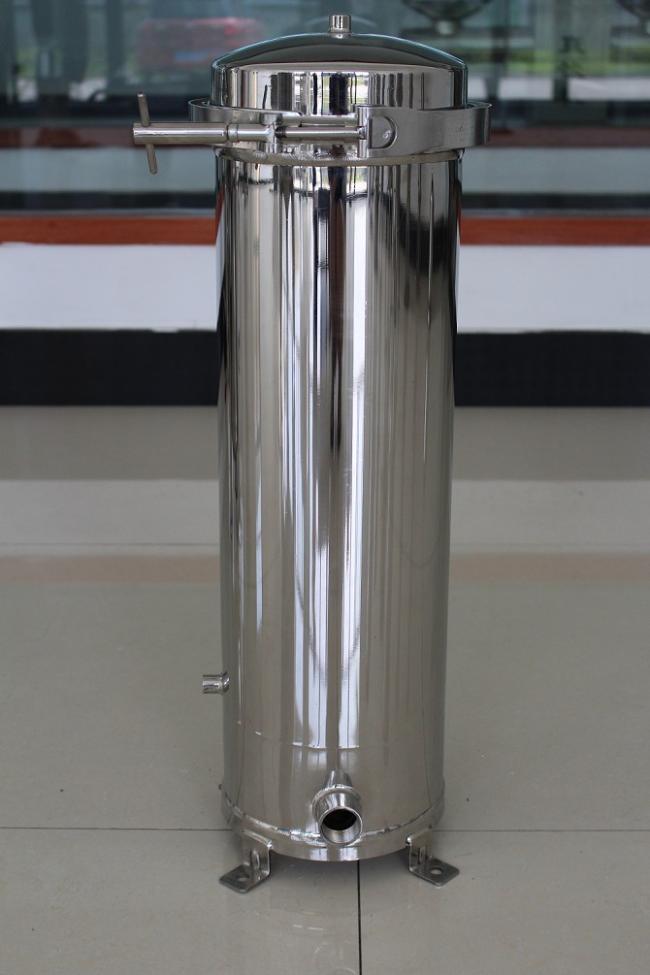

Product Picture
Package& shipment
►Package according to customer’s requirements
►Standard export carton or wooden cases
►20’ container and 40’ container
►Sea transportation or air carrier
