SS304/316L Single Cartridge Filter Polished Surface Ss Micron Filter Housing
SS304/316L Cartridge Filter Housing V Clamp Top Closure BSP Filter Cartridges Vessel with SS Cup
Discription
Cartridge filter housing -V clamp
1. Material:SS304, SS316L.
2. Max working pressure 100 Psi.
3. V-clamp closure, or with SS cup and spring assembly.
4. Polished external surface.
Cartridge filter housing Application
1.Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process.
2. Pharmaceutical industry: sterile water, oral, infusion and injection water treatment.
3. Electronics industry: water preparation semiconductors, instruments, picture tubes and other production plants, wash water filtration bar.
4. Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
5. Oil industry: oil field water injection preparation and so on.
6. Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment.
7. Seawater, brackish water desalination water treatment, hotels, apartments water treatment.
8. Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.
Dimension
| Model | A (mm) |
B (mm) |
C (mm) |
ID (mm) |
E (mm) |
F (mm) |
Inlet/ Outlet |
Drain |
| JD1-Φ170x3X10” | 75 | 180 | 505 | Φ170 | Φ216 | 230 |
1”; - 1 1/2” |
1/4";1/2” |
| JD1-Φ170x3X20” | 75 | 180 | 800 | Φ170 | Φ216 | 230 |
1”; - 1 1/2” |
1/4";1/2” |
| JD1-Φ170x 3X30” | 75 | 180 | 1050 | Φ170 | Φ216 | 230 |
1”; -2” |
1/4";1/2” |
| JD1-Φ200x 5X10” | 75 | 180 | 560 | Φ200 | Φ248 | 260 |
1”; -1 1/2” |
1/4";1/2” |
| JD1-Φ200x 5X20” | 75 | 180 | 810 | Φ200 | Φ248 | 260 |
1”; -1 1/2” |
1/4";1/2” |
| JD1-Φ200x 5X30” | 75 | 180 | 1060 | Φ200 | Φ248 | 260 |
1”; -2” |
1/4";1/2” |
| JD1-Φ200x 5X40” | 120 | 220 | 1360 | Φ200 | Φ248 | 260 |
1”; -2” |
1/4";1/2” |
| JD1-Φ250x 7X10” | 120 | 220 | 620 | Φ250 | Φ310 | 310 |
1 1/2” ; - 2” |
1/2" |
| JD1-Φ250x 7X20” | 120 | 220 | 870 | Φ250 | Φ310 | 310 |
1 1/2”; -2” |
1/2" |
| JD1-Φ250x 7X30” | 120 | 220 | 1120 | Φ250 | Φ310 | 310 |
1 1/2”; -2 1/2” |
1/2" |
| JD1-Φ250x 7X40” | 120 | 220 | 1370 | Φ250 | Φ310 | 310 |
1 1/2”; -2 1/2” |
1/2" |

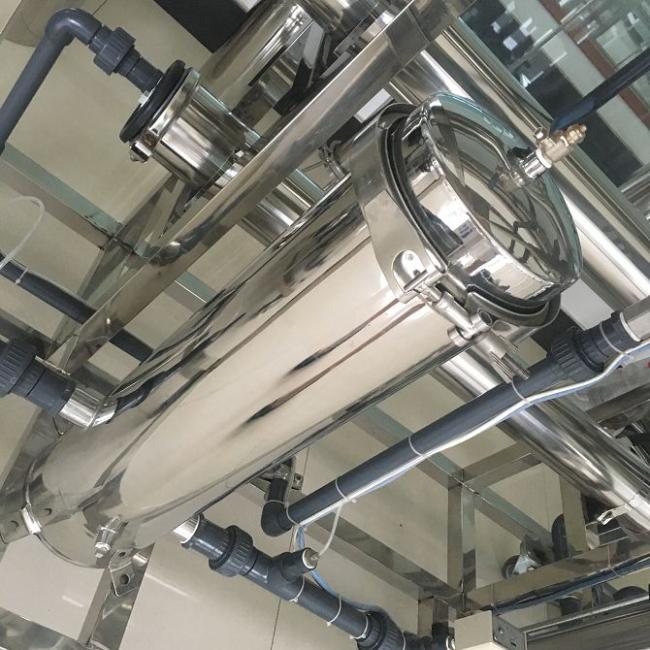

Product Picture
FAQ:
1.You are a factory or trading company?
we are manufacturer with designing, production, marketing and exporting.
2.What products do your company production?
Stainless steel membrane housing, filter housing,Such as cartridge filter housing,sanitary filter housing, bag filter housing, ion exchange filter housing, water tank etc...
3.what kindly of machine suit for me ?
Please contact our online service or email us to let us know more details about you raw water and capacity you need .
4. can you customize per requirements of customers?
Of course. Our experienced engineers can provide professional drawing , also can and produce per the drawing of customers.
5. Lead time?
To ensure all the details perfect in production process , Lead time 30 -40 workdays.
6. How to ensure the quality of final produce?
We will specially test before EX work, such as materials,smooth finish, and pressure test for every produce.
