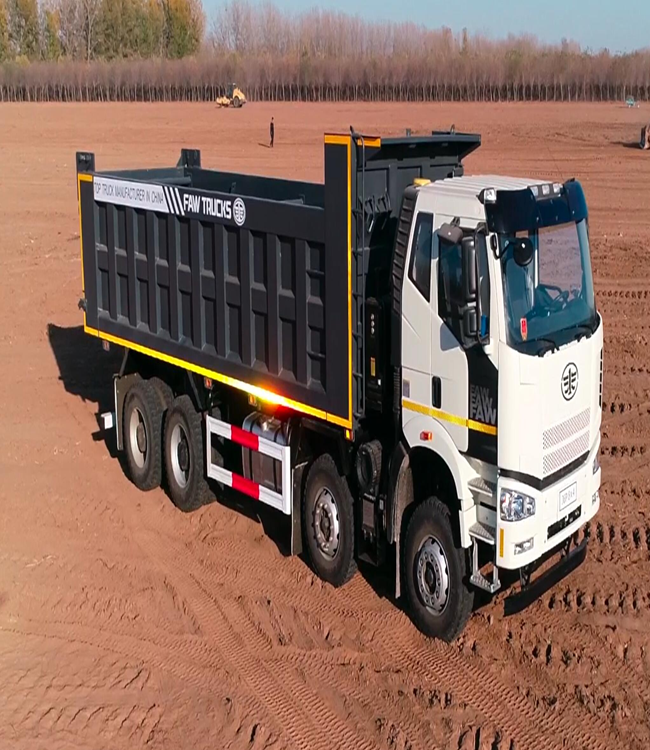

8x4 12 Wheeler 60 Ton Heavy Duty Dump Truck FAW J6P Model LHD Earthmoving With Reinforced Leaf Spring Suspension
FAW J6P Model 8*4 12 Wheeler 60Ton Heavy Duty Dump Truck LHD Earthmoving Dumper With Reinforced Leaf Spring Suspension
Product Description
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc.

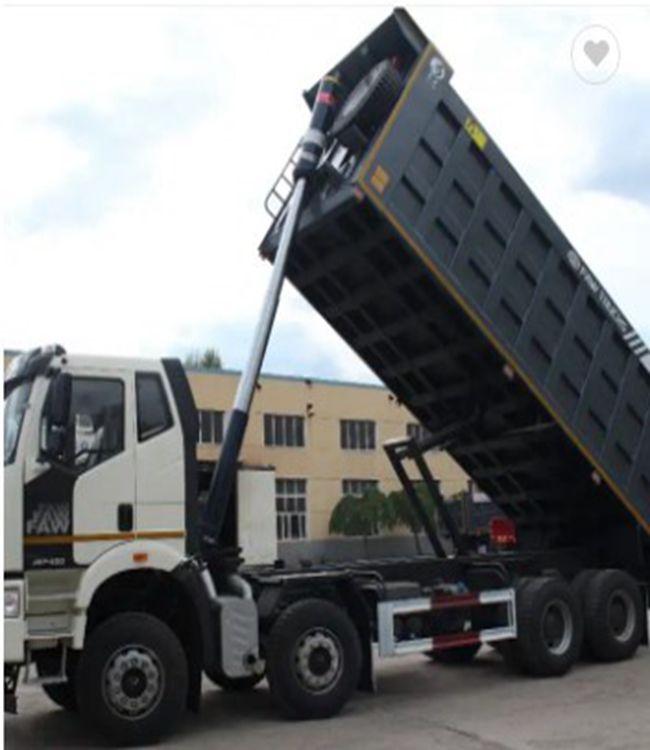

Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box
bed , which is hinged at the rear and equipped with hydraulic pistons to lift the front , allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery
| SN | 1034H364R1TB01S |
| Cabin | J6P cab, with sleeper, 2point coil spring suspension, power windows, manual mirrors, Auto A/C, Power cab flipping with hydraulic support, 17-Edition interior, Air damping seat |
| Engine | FAWDE, CA6DL2-35E5 Engine, 350HP EU5, BOSCH common rail+SCR, engine brake |
| Transmission | FAW Brand, CA12TAX160M, 12MT, with PTO |
| front Axle | Front, Model 2020 - 7T |
| rear axle | Rear, Model 300 Hub reduction - 16Ton*2, Ratio: 5.921, manual gap adjustment, Double I-Rod V-shape arrangement |
| Wheel Base | 2100+3600+1350MM |
| Frame | 300×80×(8+5)mm, Double layer beam |
| Tire | 12.00R20-18 |
| Body | 7400*2300*1500mm, Thickness 8mm/6mm, Front lift, China brand pump |
| Fuel Tank | 400L, Iron Tank |
| Suspension | Reinforced Leaf Spring |
Product details
High fuel efficiency, the average energy consumption (empty warehouse + full load) of JAW dump truck is only 22.56L.
With the interference of many pedestrians and cars, the energy consumption of the block is somewhat surprising , only 14.88L, and the fuel consumption is as low as 30L when the block is full of goods or at a relatively constant speed
