XCMG Mini Excavator 1T 1.5T 2T Small Crawler Digger 0.025CBM For Small Garden
XCMG Mini Excavator 1T 1.5T 2T Small Crawler Digger 0.025CBM For Small Garden
Product Description:
●It adopts an internationally renowned brand engine, which meets the National IV emission standard, with large torque, strong power, energy saving and fuel saving.
● The load sensing system realizes the perfect match between the engine and the main pump, provides accurate flow, improves operating efficiency, and saves fuel and time.
● Integral reinforced chassis, robot welding, welding seam forming completely eliminates the influence of human factors, stable arc, controllable depth of penetration, beautiful forming.
●High-end configuration, using international famous brand hydraulic components to ensure high reliability of the hydraulic system.
Brief Introduction:
| Performance parameter | |
| Bucket capacity (m ³) | 0.025 |
| Rotation speed (rmp) | 11-13 |
| Maximum climbing angle (°) | 30 |
| Maximum excavation force of bucket (KN) | 9 |
| Maximum digging force of the stick (KN) | 5.5 |
| Engine model | D722 |
| Power/Speed (KW/rmp) | 10.2/2500 |
| Tire type | - |
| System pressure (MPa) | 20 |
|
Working range |
|
|
Maximum digging height (mm) |
2955 |
|
Maximum unloading height (mm) |
2077 |
|
Maximum digging depth (mm) |
2017 |
| Maximum vertical depth (mm) | 1610 |
|
Maximum digging radius (mm) |
3529 |
|
Minimum turning radiusc (mm) |
- |
|
Maximum ground clearance of bulldozer (mm) |
236 |
| Maximum depth of bulldozer plate sinking (mm) | 229 |
| Boom swing angle (left) ° | 50 |
| Boom swing angle (right) ° | 52 |
|
Dimensions |
|
| Overall dimensions L * W * H (mm) | 3329 * 990/1300 * 2267 |
| Cab height (mm) | 2267 |
| Wheelbase (mm) | - |
| Wheel (rail) distance (mm) | - |
| Minimum ground clearance (mm) | - |
| Tail turning radius (mm) | - |

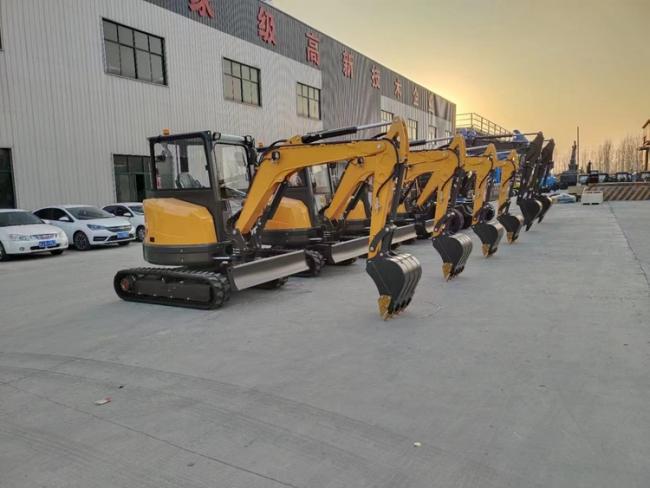

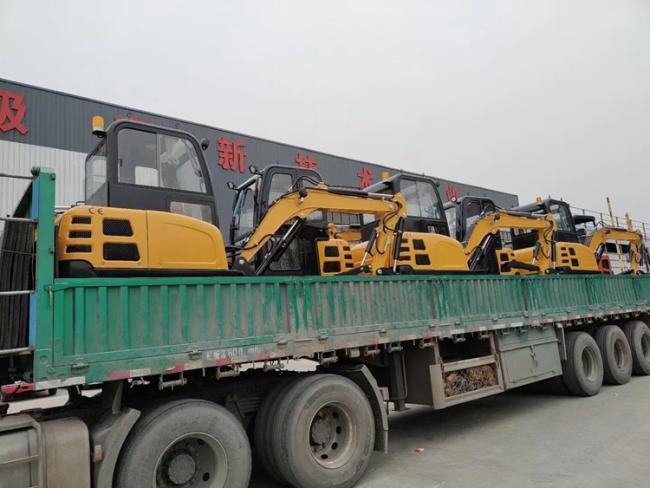

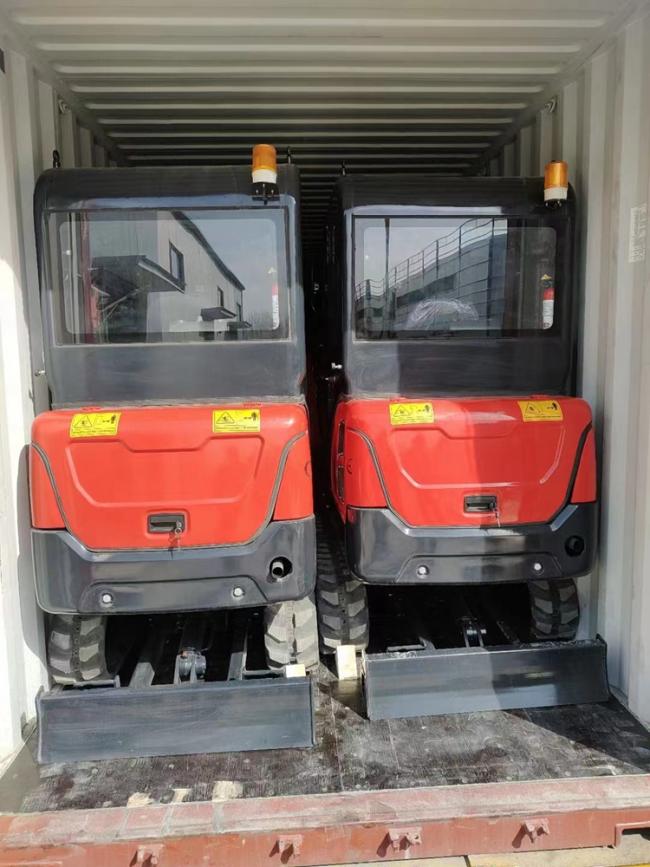

Product Show:
