High Performance 22.3 Ton Hydraulic Bucket Excavators ISUZU Or Cummins Engine 128kw-135kw 1.2 Cbm
Price:
Negotiation
MOQ:
1 Piece
Delivery Time:
Full Payment 7-15 Work Days
Brand:
SDHIM
Product Description
High-Performance 22.3 Ton Hydraulic Excavator ISUZU Or Cummins Engine128kw-135kw 1.2 Cbm Bucket
Product Advantages
- Exclusive highly efficient hydraulic control system
- Engine: ISUZU or Cummins
- Main pump: Kawasaki
- Control valve: Parker or Kawasaki, optional
Product Parameters
| Weight | 22.3T |
| Bucket capacity | 1.2m3 |
| Engine rated power | 128kw-135kw |
| Swing speed | 10.7min-1 |
| Travel speed (high/low) | 5.9-3.2km/h |
| Ground specific pressure | 43.5kpa |
| Gradeability (%) | 70 |
| Digging force | Standard 146.4KN |
| Boom length | 5700mm |
| Arm length | 2900mm |
| Maximum digging depth | 6592mm |
| Maximum digging height | 9616mm |
| Maximum unloading height | 6830mm |
| Maximum digging radius | 9873mm |
| Minimum turning radius | 3560mm |
| a | Transport length | 9600mm |
| b | Transport arm height | 3005mm |
| c | Wheelbase | 3700mm |
| d | Radius of gyration platform end | 2794mm |
| e | Counter weight ground clearance | 1096mm |
| f | Track gauge | 2400mm |
| g | Total width of undercarriage | 2980mm |
| h | Width of upper structure | 2750mm |
| i | Width of track shoe | 600mm |
| j | Ground clearance | 475mm |
| k | Total length of travel mechanism | 4440mm |
| l | Cabin height | 845mm |

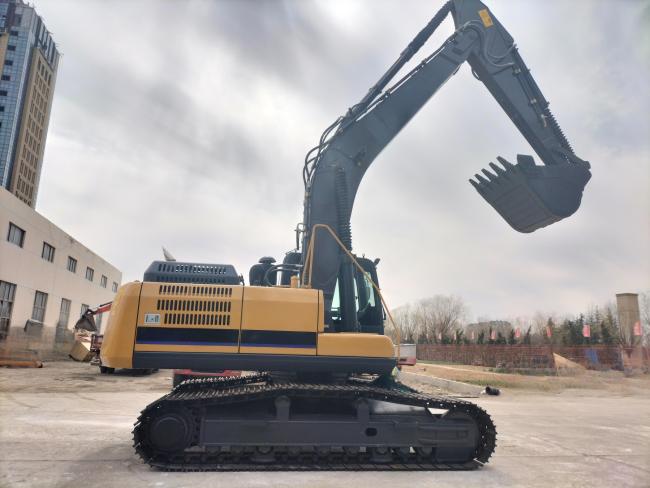

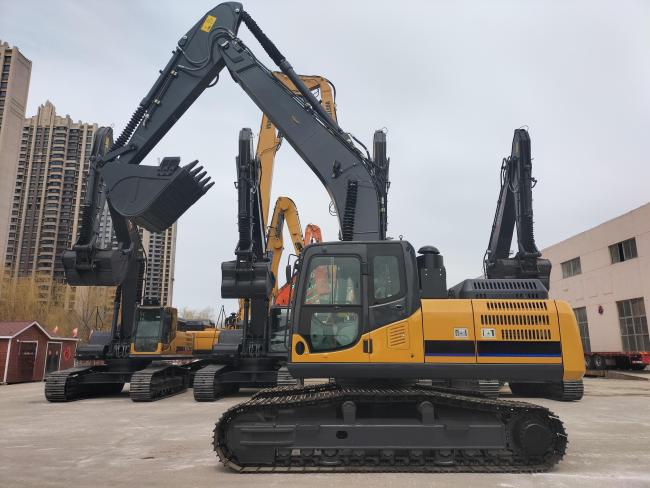

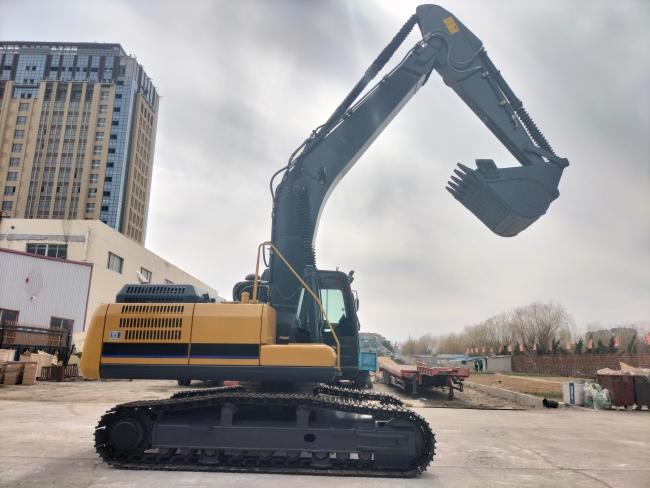

Detailed Photos
