Powerful 29.5 Ton Hydraulic Excavator ISUZU Or Cummins Engine 168kw 1.4 Cbm Bucket Rapid Operation
Price:
Negotiation
MOQ:
1 Piece
Delivery Time:
Full Payment 7-15 Work Days
Brand:
SDHIM
Product Description
Powerful 29.5 Ton Hydraulic Excavator ISUZU Or Cummins Engine 168kw 1.4 Cbm Bucket Rapid Operation
Product Advantages
- Effectively prevent mixing of soil and rock
- Highly efficient and rapid operations
- High-strength frame structure and greater ground clearance
- Safe and open engine hood
- Convenient and swift maintenance
Product Parameters
| Weight | 29.5T |
| Bucket capacity | 1.4m3 |
| Engine rated power | 168kw |
| Swing speed | 10.1min-1 |
| Travel speed (high/low) | 5.8-3.4km/h |
| Ground specific pressure | 49kpa |
| Gradeability (%) | 70 |
| Digging force |
Standard 188KN/ Pressurized 199.9KN |
| Boom length | 5700mm |
| Arm length | 2900mm |
| Maximum digging depth | 6180mm |
| Maximum digging height | 9705mm |
| Maximum unloading height | 7024mm |
| Maximum digging radius | 10175mm |
| Minimum turning radius | 4019mm |
| a | Transport length | 10055mm |
| b | Transport arm height | 3697mm |
| c | Wheelbase | 4200mm |
| d | Radius of gyration platform end | 3360mm |
| e | Counter weight ground clearance | 1190mm |
| f | Track gauge | 2580mm |
| g | Total width of undercarriage | 3180mm |
| h | Width of upper structure | 2880mm |
| i | Width of track shoe | 600mm |
| j | Ground clearance | 520mm |
| k | Total length of travel mechanism | 4940mm |
| l | Cabin height | 845mm |

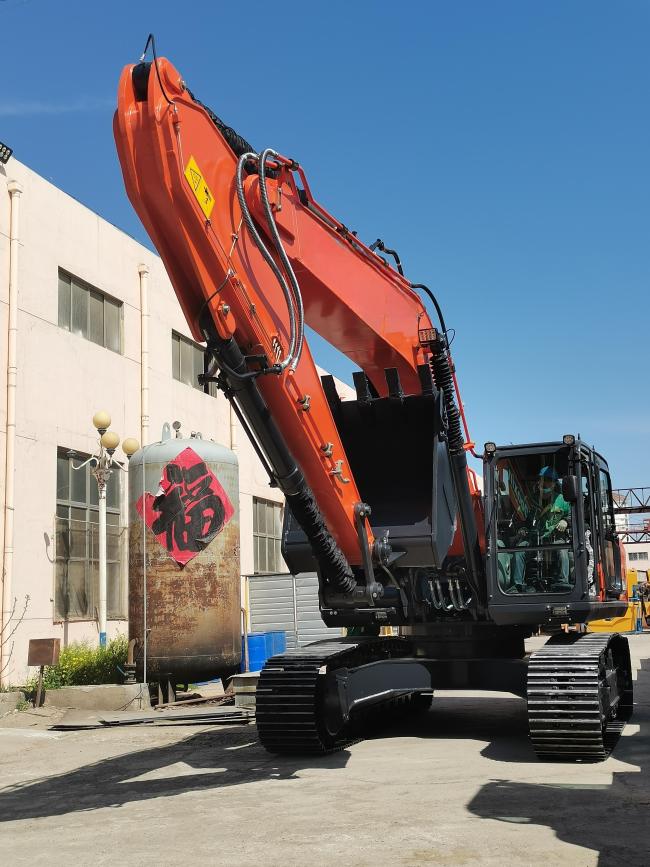

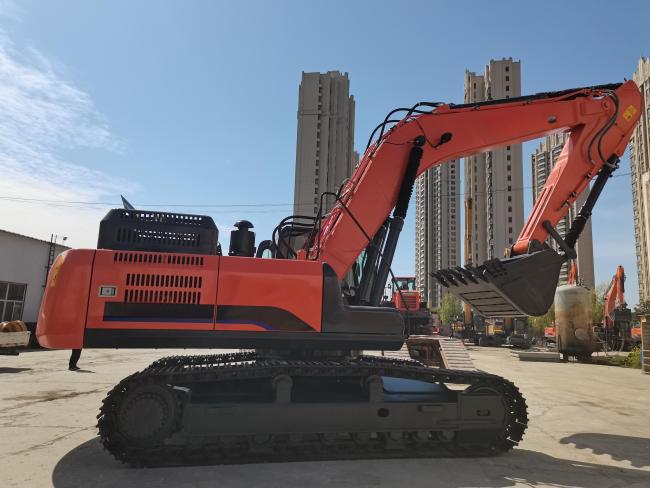

Detailed Photos
