Hydraulic XE35U 3 Ton XCMG Mini Excavator 3TNV88-BPXG
XCMG Hydraulic Excavator XE35U 3 Ton Mini Excavator
Product Advantages
XCMG XE35U mini excavator 3 ton.
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
Advantages and highlights:
- More energy-conservation and environmental protection
- More efficient return
- More reliable and durable
Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.
Product Parameter
|
Model |
Metric unit |
XE35U |
||
|
Operating weight |
kg |
4200 |
||
|
Bucket capacity |
m3 |
0.11 |
||
|
Engine |
Model |
|
3TNV88-BPXG |
|
|
Displacement Standard |
|
Tier IIIA |
||
|
Style |
Direct injection |
--- |
√ |
|
|
Four strokes |
--- |
√ |
||
|
Water cooling |
--- |
√ |
||
|
No. of cylinders |
--- |
3 |
||
|
Output power |
kW/ r/min |
21.6/2400 |
||
|
torque/speed |
N.m |
107.2/1444 |
||
|
Displacement |
L |
1.642 |
||
|
Main performance |
Travel speed(H/L) |
km/h |
3.6/2.2 |
|
|
Gradeability |
% |
58 |
||
|
Rotating speed |
r/min |
8.5 |
||
|
Ground pressure |
kPa |
36.6 |
||
|
Bucket digging force |
kN |
24.6 |
||
|
Arm crowd force |
kN |
17.8 |
||
|
Appearance size |
A |
Overall length |
mm |
4960 |
|
B |
Overall width |
mm |
1740 |
|
|
C |
Overall height |
mm |
2535 |
|
|
D |
Width of platform |
mm |
1585 |
|
|
E |
Length of crawler |
mm |
2220 |
|
|
F |
Overall width of chassis |
mm |
1740 |
|
|
G |
Width of crawler |
mm |
300 |
|
|
H |
Track length on ground |
mm |
1440 |
|
|
I |
Crawler gauge |
mm |
1721 |
|
|
J |
Clearance under counterweight |
mm |
587 |
|
|
K |
Min. ground clearance |
mm |
297 |
|
|
L |
Min. tail swing radius |
mm |
870 |
|
|
Working scope |
A |
Max. digging height |
mm |
5215 |
|
B |
Max. dumping height |
mm |
3760 |
|
|
C |
Max. digging depth |
mm |
3060 |
|
|
D |
Max. vertical wall digging depth |
mm |
2260 |
|
|
E |
Max. digging reach |
mm |
5415 |
|
|
F |
Min. swing radius |
mm |
2170 |
|

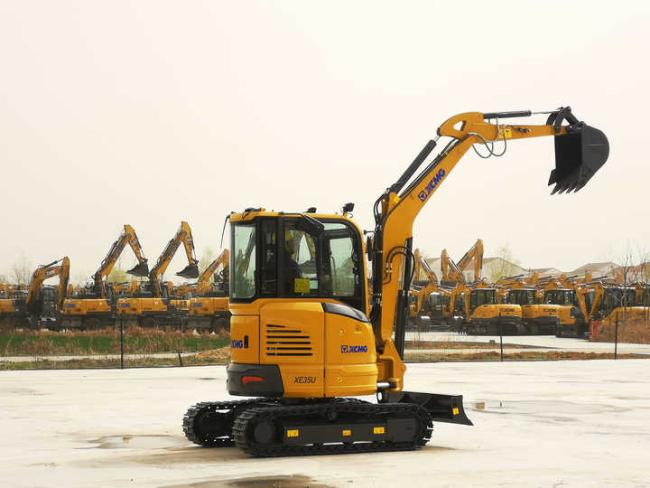

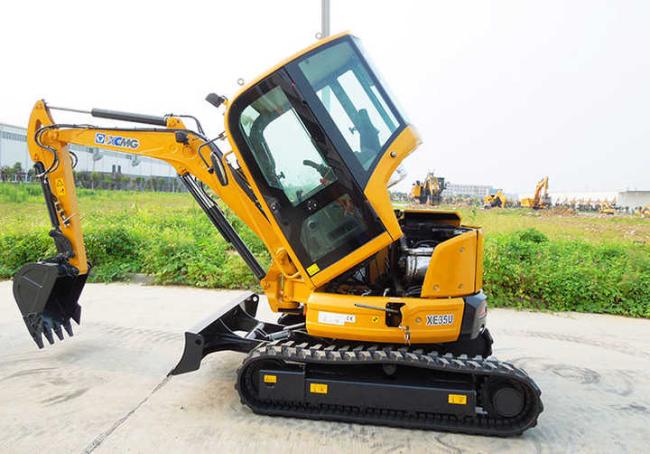

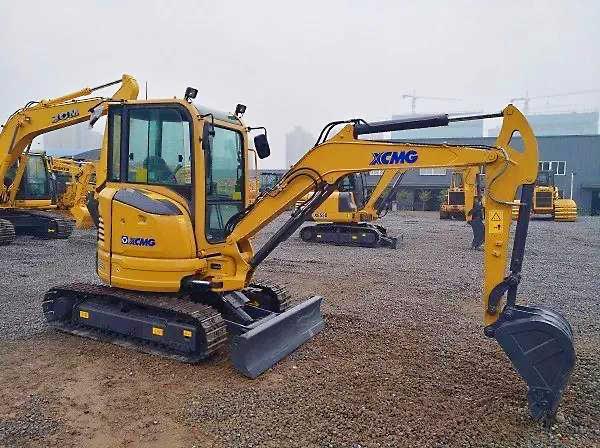

Detailed Photos
