LW600KN-T25 XCMG 25 Ton Tractor Forklift Machinery
XCMG Wheel Loader LW600KN-T25 25 Ton Tractor Forklift Shovel Machinery
Product Features of loader
- 1. The Z-shaped link mechanism designed espeially for stone operating cnditions features high breakout force and loading capacity and the classic double-rocker structure ensures a broad operating view.
- 2. The extended wheelbase and wheel tread and ultra-high ballast realize good working stability of the machine.
- 3. The China-lIl engine, high reliability XCMG's electronic control countershaft transmission, and the reinforced dry type drive axle are matched perfectly to save the fuel and reduce the consumption.
- 4. The higher dumping height and dumping distance, extensive rotation angle scope of forks, and adjustable fork spacing are suitable to diversified operation needs, induding the forklifting and overturning of stones.
- 5. The 26.5-25 28PR engneering tires are suitable to diversified severe road conditions, featuring powerful off-road performance. The optional tire chains are at your choice.
- 6. The high ground clerance,small tuming radius, and high depature angle of the classis can adapt to various complicated operation conditions.
Product Parameters
|
Parameter |
Specifications |
Unit |
|
|
Operating weight |
28500 |
kg |
|
|
Rated power |
178 |
kw |
|
|
Rated lifting capacity |
25 |
t |
|
|
Fork size(LxW) |
1500x1515 |
mm |
|
|
Loading capacity at highest position |
20000 |
kg |
|
|
Gradeability |
Unloaded |
23 |
° |
|
Full-load |
15 |
° |
|
|
Working device actuation time |
Lifting under rated load |
≤10 |
s |
|
Forward tilting of forks |
≤1 |
s |
|
|
Lowering under no-load |
≤7 |
s |
|
|
Total cycle time |
≤18 |
s |
|
|
Tire specification |
Front wheels |
26.5-25-28PR |
- |
|
Rear wheels |
26.5-25-28PR |
- |
|
|
Overall dimensions(LxWxH) |
8740x3250x3585 |
mm |
|
|
Max. machine height |
4640 |
mm |
|
|
Dumping height(22.5°) |
2650 |
mm |
|
|
Dumping range(22.5°) |
1925 |
mm |
|
|
Max. lifting height |
3200 |
mm |
|
|
Material transport height |
480 |
mm |
|
|
Turning radius |
Tire center |
7190 |
mm |
|
Material transport of forks |
7160 |
mm |
|
|
Wheelbase |
3680 |
mm |
|
|
Wheel tread |
2575 |
mm |
|

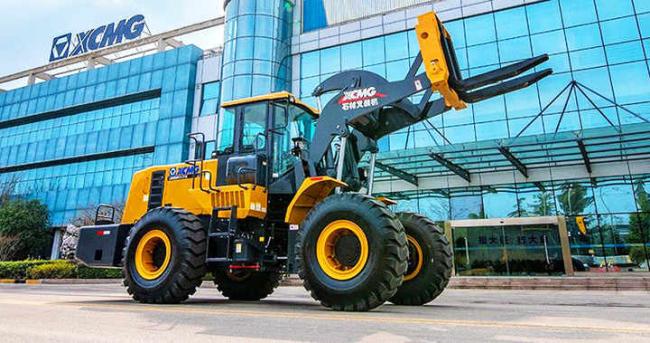

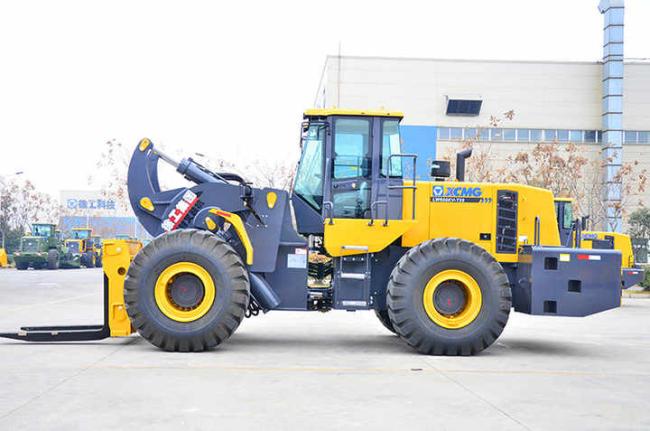

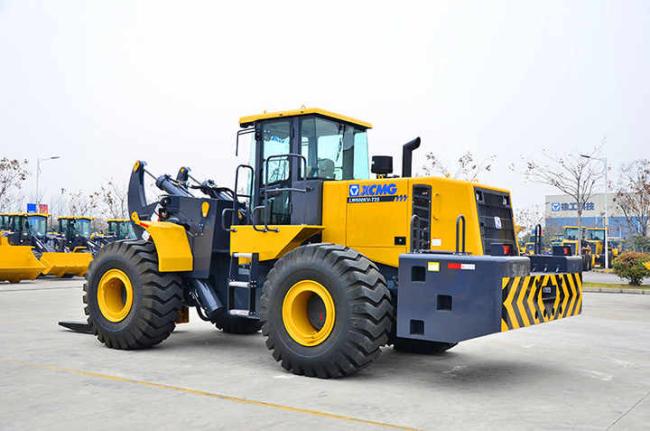

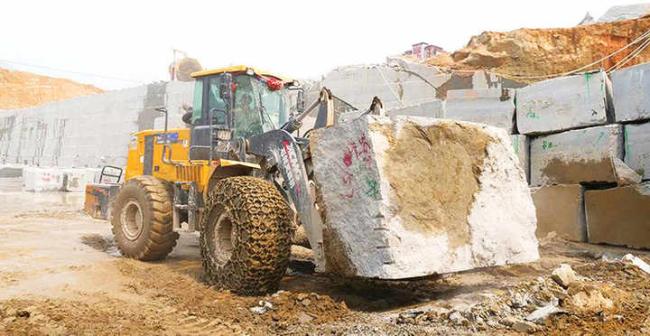

Photo Show
