6000 - 8000r/Min Wood Tenoner MDF HDF Strip Single Phase Tenoner
Double End Tenoner for Sale - VH-MX2626D Double End Tenoner
Professional Solution
Applicable to Panel furniture, hutch ark door,etc; Frequency control of motor speed, high precision conveyor chain rolling guide feed system; Active on pressure strip, with electric lift; Double linear guide, ball screw motor adjustable wide.
-

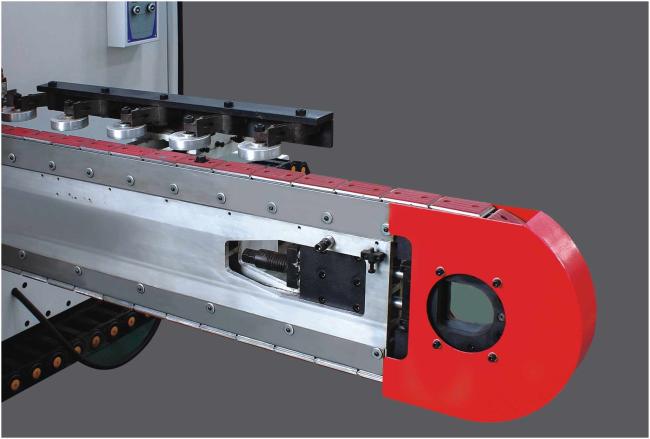

he floor plates are sent into the runnig bearings of the machining track with the material feeder and delivery rubber rollers, and the guide rails are made with extra hard materials, ensuring the machining precision.
-
-

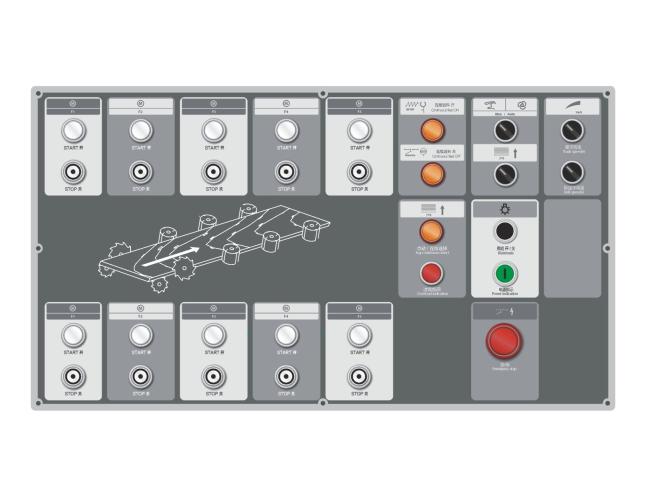

With the imported PLC and the frequency conversion device, the double-end miller works very smooth.
-

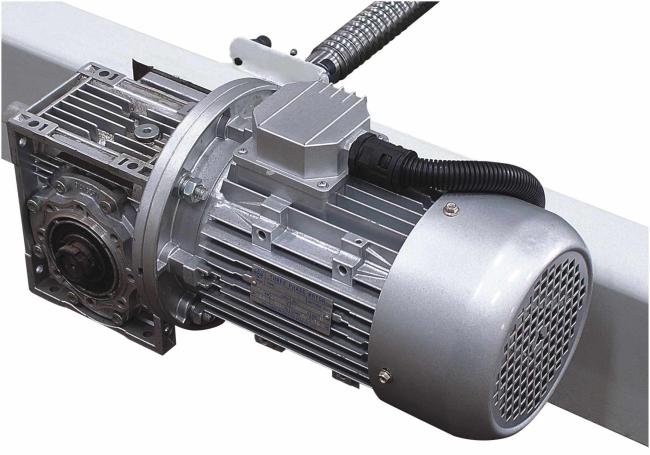

Forcefully feeding decelerator features speed regulation by frequency inverter.
-
-
With the built-in cleaning brush wheel, the dust inside the track guide rail can be cleaned automatocally.
-
With the compact sawing shaft mechanism, the cutters are closed to the pressing belt, ensuring the machining stability.
-
Structure acting as ball-screw makes machine have more accurate adjustment.
| Specification and Model | MB2626D |
| Feeding speed (m/min) | 6-30m/min |
| Max. Working wiidth (mm) | 800mm |
| Min. Working width (mm) | 100mm |
| Max. Working length (mm) | 2600mm |
| Min. Working length (mm) | 300mm |
| Max. Working thickness (mm) | 60mm |
| Max. Working thickness (mm) | 10mm |
| Vertical and click shaft revolution (r/min) | 6000/6000-8000r/min |
| Vertical and click shaft diameter (mm) | Φ40mm |
| Vertical milling cutter diameter (mm) | Φ160-200mm |
| Click milling cutter diameter (mm) | Φ180mm |
| Feeding rubber roller diameter (mm) | |
| Vertical spindle motor power (kw) | 3kwx6sets |
| Card buckle spindle motor power (kw) | 2.2kwx2sets |
| Feeding motor power (kw) | 3kw |
| Elevatory motor power (kw) | 0.75kw |
| Lifting motor power (kw) | 0.75kw (width openning motor) |
| Total power (kw) | 26.9kw |
| Air pressure (MPa) | 0.6MPa |
| Physcial dimension (mm) | 3450x2600x1670mm |
- FAQS
- Q: What is your after-sale service?A: 1. We have one year warranty lifetime maintenance service. 2. For any technical problems you can contact us immediately. We have overseas repair and On-going Technical Support.
- Q: What is the ways of packing?A: Standard export package or packed as client’s requirement.
- Q: What is the delivery time of the products?A: 1. 30-45 days after deposit received, this delivery time is only for our standard products. 2. Some special orders would require more time. For more detailed timing please send us inquiry or contact us directly.
- Q: How can I get the latest price and model details?A: 1. You can send us inquiry on the message board on the bottom left,we will offer you with details. Or contact us directly through email, phone. 2. Online-chat is available, you can contact us with QQ, Weixin, whatsapp, skype etc.
