51.2v 100ah 48V 5kw 6kw 10kw Rack Mounted Lithium Battery For Solar Systems
Price:
$500.00/pieces 1-999 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTN
Product Description
Products Description
TTN Rack Mode Lithium Energy Storage Battery
TTN-U3000/5000/10000
features:
※ High power, friendly interface, free combination
※ High quality battery cell, precise combination
※ CAN/RS485/WIFI/4G/Blue tooth communication
※ BMS customization supported
※ Thick shell, well protection for inside cells
Application area:
※Energy storage system, control system, alarm system, power system, database
※Emergency lighting system, emergency power supply, UPS
※ Telecommunication, communication, firefighting system

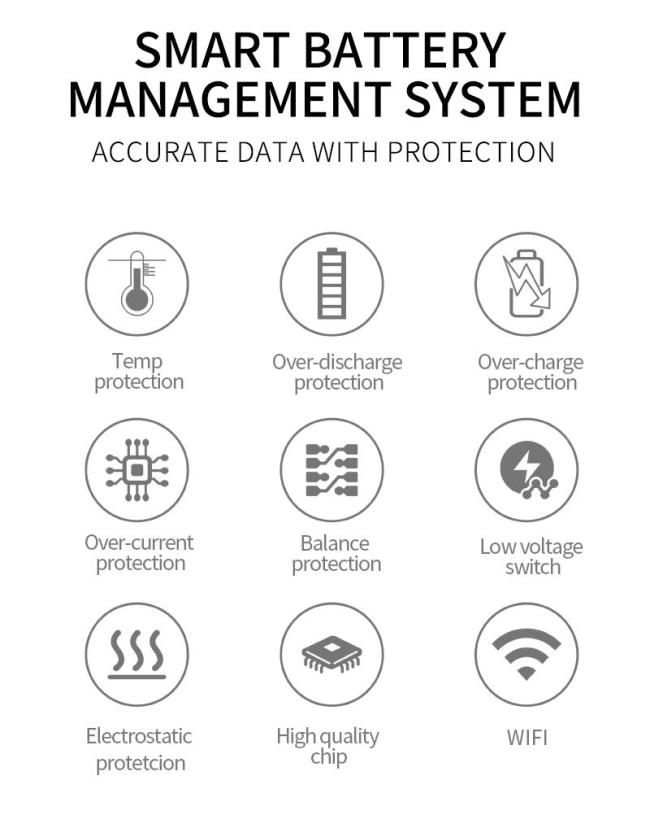

BMS Protection:
※Over Current
※Short Circuit
※Over Voltage
※High Temperature
※Low Voltage
|
Model
|
U3000 48V/51.2V
|
U5000 48V/51.2V
|
U8000 48V/51.2V
|
U10000 48V/51.2V
|
|||
|
Capacity
|
2.4KWH/2.56KWH
|
4.8KWH/5.12KWH
|
7.2KWH/7.68KWH
|
9.6KWH/10.24KWH
|
|||
|
Standard Discharging Current
|
25A
|
50A
|
50A
|
50A
|
|||
|
Max Discharging Current
|
50A
|
100A
|
100A
|
100A
|
|||
|
Working Voltage
|
40.5-54VDC/43.2-57.6VDC
|
40.5-54VDC/43.2-57.6VDC
|
40.5-54VDC/43.2-57.6VDC
|
40.5-54VDC/43.2-57.6VDC
|
|||
|
Standard Voltage
|
48VDC/51.2VDC
|
48VDC/51.2VDC
|
48VDC/51.2VDC
|
48VDC/51.2VDC
|
|||
|
Max Charging Current
|
25A
|
50A
|
75A
|
100A
|
|||
|
Max Charging Voltage
|
54V/57.6V
|
54V/57.6V
|
54V/57.6V
|
54V/57.6V
|
|||
|
Suggested DOD Model
|
90%
|
|
|
|
|||
|
Humidity
|
20-60%
|
|
|
|
|||
|

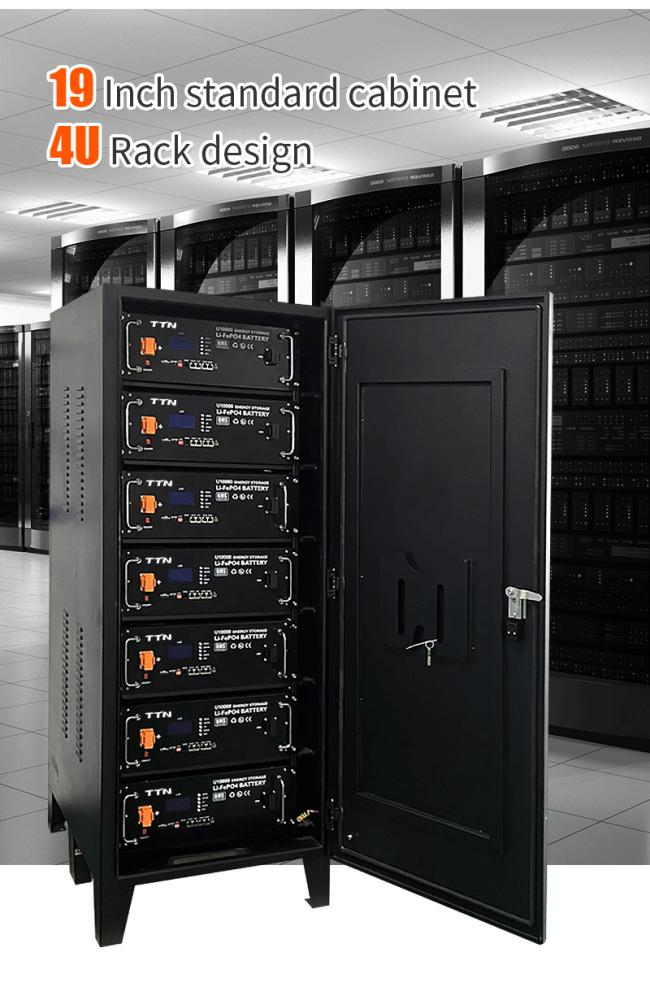

Installation
|
Rack mounted or cabinet
|
|
|
|
|||
|
IP Rating
|
IP20
|
|
|
|
|||
|
Max Number Of Parrallel
|
16
|
|
|
|
|||
|
Warranty
|
5 Years
|
|
|
|
|||
|
Communication
|
CAN/RS485/RS232(WiFi/bluetooth/4G optional)
|
|
|
|
|||
|
Product Size
|
410*484*122mm
|
410*484*178mm
|
590*484*178mm
|
590*484*178mm
|
|||
|
Packing Size
|
510*567*165mm
|
540*510*270mm
|
730*544*270mm
|
730*544*270mm
|
|||
|
Net Weight
|
24.5kg/26.5kg
|
39.5kg/41.5kg
|
55kg/58kg
|
70.5kg/72.5kg
|
|||
|
Gross Weight
|
27.05kg/29.05kg
|
45.5kg/47.5kg
|
62kg/65kg
|
78.5kg/80.5kg
|
|||
Certifications
