10 Wheels SHACMAN F3000 CNG Dump Truck 6x4 Euro V WEICHAI-430HP Green Perfect For Construction And Mining
SHACMAN CNG Dump Truck F3000 6x4 430HP EuroV Green
Detailed Product Description
Model: SX3258DV464T
Drive type: 6X4
Engine Brand: WEICHAI
Engine Model: WP12NG430E51 CNG
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50 spline, pull up
Dump Truck Parameters
| Model | SX3258DV464T | |
| Drive type | 6X4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 4575+1400mm |
| Performance | Maximum speed/(km/h) | 40～55/75 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12NG430E51 CNG | |
| Power/(kw/HP) | 316kw / 430Hp | |
| Maximum torque / (N.M)/rpm | 2060 N·M | |
| Displacement/(L) | 11.596 L | |
| Emission standard | EuroⅤ | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 spline, pull up | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 970-850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| CNG tank | Tank capacity/(L) | 8×150L |
| Electrics | Type | 24V |
| Battery | 180Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 180Ah maintenance-free Battery, SHACMAN logo, full English logo. | |
- Combining performance, versatility and safety, the SHACMAN F3000 430 Mario V Power Tipper is a game-changer in the heavy haulage industry. Its advanced features and commitment to environmental responsibility make it the leading choice for businesses in the heavy haulage sector.
- Featuring improved cab design with advanced technology from German truck giant MAN, the F3000 cab is spacious, comfortable and safe, giving you peace of mind as you go about your work.

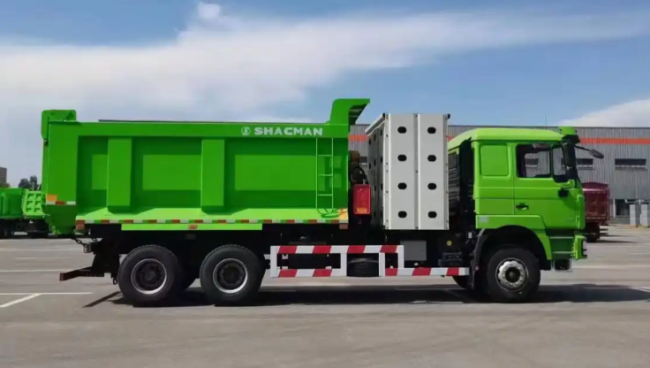

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
