CBB61 Air-Conditioner Fan Self-Healing Capacitors Noise-Suppression B-Class 85℃
CBB61 Air-Conditioner Fan Self-Healing Capacitors Noise-Suppression B-Class 85℃
CBB61(MPP/MKP) is made of metallized polypropylene film, non inductive construction, encapsulated in a plastic case and sealed with epoxy resin, fetch out in many ways.We have 100% automatic production to ensure the most stable quality.
◾94V0 retardant plastic box and epoxy filling
◾Standard terminal leads
◾Low noise, long life
◾Special noise-suppression engineering process
◾Better self-healing, more stable electrical performance
Application
Widely applied to Window Air Conditioner, Fission Air Conditioner, Cabinet Air Conditioner, Frequency Conversion Air Conditioner and large Commercial Air-Conditioner and etc.
Basic Info.(Technical Parameters)
| Operation temperature range | -40℃～+105℃(40/70/21 40/85/21 40/105/21) | |
| Rated Voltage | 110V.AC~600V.AC | |
| Capacitance Range | 0.1uF~20uF | |
| Capacitance tolerance | ±5% (J), ±10% (K) | |
| Tangent of loss angle(20℃) | ≤0.0010 (at 100Hz ) | |
| Insulation resistance | Rc≥5000s(100V.DC 60s) | |
| Flammability | UL94V-0 | |
| Operation life time | 10000H(B Class) at 85℃ | |
| Withstand voltage | between terminals | 2.0Un (VAC) / 60s(CQC, VDE, TUV) |
| 1.5Un (VAC) / 60s (UL) | ||
| between terminals and case | 2.0Un+1000(VAC) / 60s(≥2000VAC) | |
| Class of safety protection | UL VDE CQC(S0) / UL TUV CQC(S3) | |

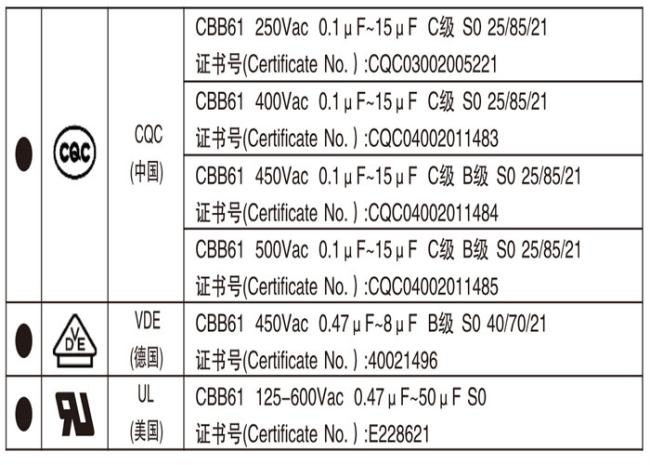

Certification
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spray metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Surface Color ( RoHS / REACH )
BLUE OR GREY
Packaging
Factory Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
