CBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor
CBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor With Aluminum Can
CBB65 Motor Run Capacitors (Round-Shaped, Single Capacitance Value or daul Capacitance Value).CBB65 Motor Run Capacitors feature a low-loss, self-healing Metalized Polypropylene Film dielectric system, which are castor oil-filled.The motor run capacitors with Single capacitance value are offered in voltages ranging from 240 through 660 VAC and with Single capacitance range of 0.5 to 120 microfarads. The motor run capacitors are designed to operate in continuous duty over a broad temperature range from -40°C to +85°C with full rated 50/60 Hz. AC voltage applied. CBB65 motor run capacitors offer outstanding electrical characteristics, high capacitance stability over time and temperature, and very low internal power losses (Dissipation Factor). Case is aluminum round-shaped cans and standard terminations are 2*4 terminals. it also have 1*1pin,2*2pin,4*4pin,2*3*4pin or wire.
◾Inner anti-explosion
◾Light weight
◾Long life
◾Low noise
◾Low dissipation
Application
Widely used in the starting and operation of motors (compressors) of air conditioners, washing machines, dishwashers, fans and other electrical equipment.
Basic Info.(Technical Parameters)
| Operation temperature range | -40℃～+85℃(40/70/21 40/85/21) | |
| Rated Voltage |
250VAC / 370VAC / 440VAC / 450VAC / 660VAC |
|
| Capacitance Range | 5uF~80uF | |
| Capacitance tolerance | ±5% (J), ±10% (K) | |
| Tangent of loss angle(20℃) | ≤0.0020 (at 100Hz ) | |
| Insulation resistance | Rc≥5000s(100V.DC 60s) | |
| Operation life time |
Class B (10000h) / Class C (3000h) |
|
| Withstand voltage | between terminals | 2.0Un (VAC) / 60s(CQC, VDE, TUV) |
| 1.5Un (VAC) / 60s (UL) | ||
| between terminals and case | 2.0Un+1000(VAC) / 60s(≥2000VAC) | |
| Class of safety protection | UL TUV CQC(S2) | |
Technical Data(mm)
| Rated CAP. | 250 / 300 / 370V | 400 / 440 / 450V | ||||
| Cylindrial | Oval | Cylindrial | Oval | |||
| ØD | H | L×W×H | ØD | H | L×W×H | |
| 10uF | 30 / 40 | 50 / 65 | 51.5×31.5×55 | 40 | 65 | 51.5×31.5×65 |
| 15uF | 35 / 40 | 60 / 65 | 51.5×31.5×65 | 40 | 75 | 51.5×31.5×65 |
| 20uF | 40 / 45 | 60 / 65 | 51.5×31.5×75 | 45 | 75 | 51.5×31.5×75 |
| 25uF | 40 / 45 | 60 / 65 | 51.5×31.5×75 | 50 | 75 | 51.5×31.5×75 |
| 30uF | 45 / 50 | 65 / 75 | 71.5×45×65 | 50 | 85 | 71.5×45×75 |
| 35uF | 45 / 50 | 65 / 75 | 71.5×45×65 | 50 | 85 | 71.5×45×85 |
| 40uF | 45 / 50 | 75 / 85 | 71.5×31.5×75 | 50 | 100 | 71.5×45×85 |
| 50uF | 45 / 50 | 75 / 85 | 71.5×45×85 | 50 | 110 | 71.5×45×100 |
| 60uF | 45/ 50 | 75 / 85 | 71.5×45×100 | 50 | 120 | 71.5×45×100 |

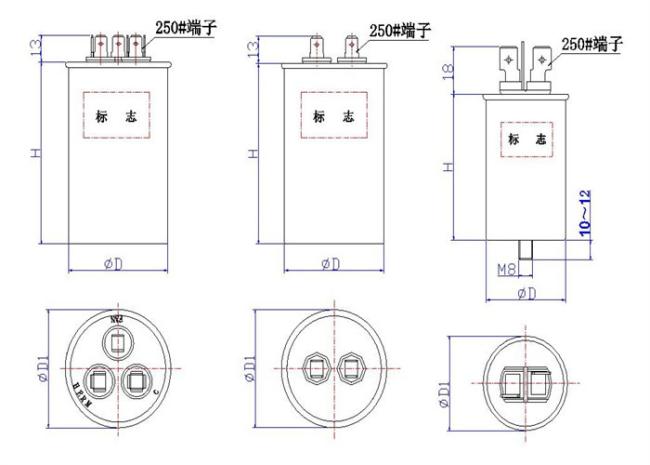

Outline drawing
