CBB60 450V 8.0UF Water Pump Motor Capacitor 50 / 60Hz RoHS 250 Terminals
Price:
To be negotiated
MOQ:
10 pieces
Delivery Time:
7-20 workdays
Brand:
XWD
Product Description
CBB60 450V 8.0UF Water Pump Motor Capacitor 50 / 60Hz RoHS 250 Terminals
This Water Pump Motor Capacitor is a high-quality run capacitor unit designed to function as a water pump unit. It features frequency of 50HZ, temperature range of -25℃~+70℃, and tolerance of ±5%.
Applications
High stability, small volume, large capacity, good self-healing, low loss, Small inductance and high waterproof performance.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
8.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
3000 hours | |
|
Size |
Φ40mm*60mm(1-37/64in*2-23/64in) |
|
|
Operating temperature range |
-25℃~70℃ | |
| Operation temperature range | -40℃~+105℃(40170121 40/85121 40/105/21) |
| Rated Voltage | 250V.AC-600V.AC |
| Capacitance Range | 3uF~120uF |
| Capacitance tolerance | ±5% (J),±10%(K) |
| Tangent of loss angle(20℃) | ≤0.0010(at 100Hz) |
| Insulation resistance | Rc>5000s(100V.DC 60s) |
| Flammability | UL94V-0 |
| Operation life time | 3000H(C Class)at 70℃/10000H(B Class) at 85℃ /30000H(A Class)at 85℃ |
| Withstand voltage | 2.0Un (VAC)/60s(CQC, VDE, TUV) |
| 1.5Un (VAC)/60s (UL) | |
| 2.0Un+1000(VAC)/60s(≥2000VAC) | |
| Class of safety protection | UL VDE CQC(SO) / UL TUV CQC(S3) |

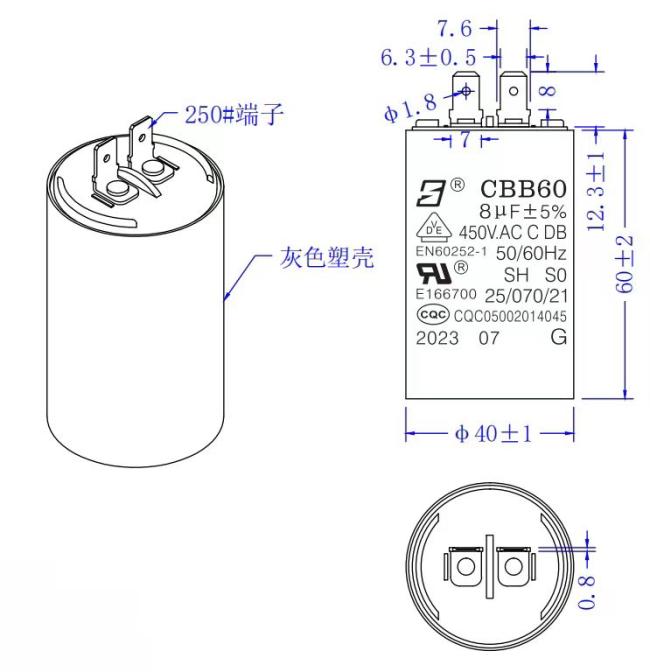

Outline Drawing(40mm=1-37/64in,60mm=2-23/64in)
