CBB61 450V 2.0UF Run Capacitor Fan Capacitor Black Epoxy Resin B-Class 187 Terminal
CBB61 450V 2.0UF Air Conditioner Fan Capacitor 94-V0 Retardant Plastic Box Epoxy Filling
Air conditioner fan capacitors are an indispensable part of air conditioner fan motor starting device. This type of air conditioner fan motor starting device capacitor is made of high quality plastic material with triangle shape and location hole for installation. It is widely used for fans, ceiling fans, etc. and complies with UL810 reference standard.
This air conditioner fan control capacitor is reliable and durable, and can provide a long service life. It has the advantages of low temperature rise, low loss and low noise to ensure the stable operation of the ceiling fan motor. This air conditioner fan capacitor can be used in a wide range of applications and is suitable for all kinds of air conditioner fan motor starting device. It is easy to install, maintain and operate, and is an ideal choice for air conditionrt fan motor starting device.
Basic Info.(Techical Parameters)
| Operation temperature range | -40℃～+85℃ ( 40/85/21 ) | |
| Rated Voltage | 450V.AC | |
| Capacitance Range | 2.0UF | |
| Capacitance tolerance | ±5% | |
| Dissipation factor |
≤0.002 f=100Hz |
|
| Insulation resistance |
R≥2500MΩ at 100VDC |
|
| Flammability | UL94V-0 | |

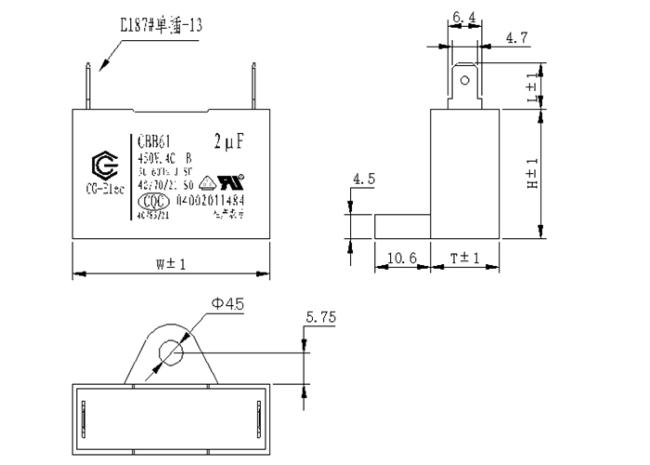

Outline Drawing(W=1-15/32in,T=19/32in,H=1-1/32in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Surface Color (RoHS / REACH)
BLUE OR BLACK

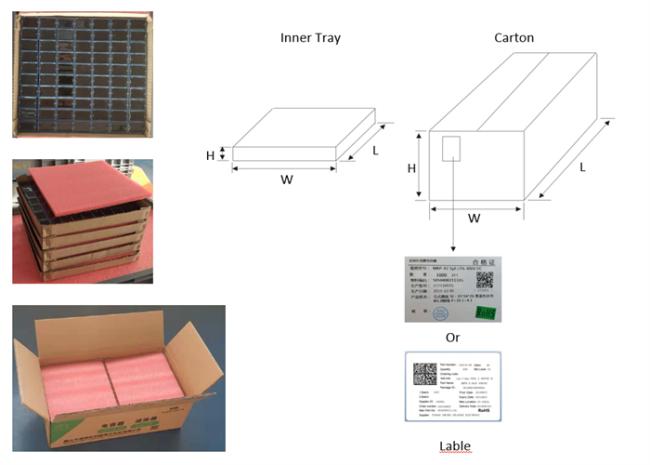

Packaging
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
