CBB61 Air Conditioner Fan Capacitor 450V 10mfd With 250 Terminal B-Class SH S0
CBB61 Air Conditioner Fan Capacitor 450V 10mfd With 250 Terminal B-Class SH S0
Air conditioner capacitor is a specialized motor speed regulator, designed for air conditioner fan motors. It is produced by original manufacturer, ODM, agency and retailer, with ±5% tolerance. The capacitor has a white 94-V0 retardant plastic box and epoxy filling, and is used for fans, air conditioner fans, etc.
It is a highly reliable, stable and durable product that helps to control the speed of the motor for a better performance. The air conditioner fan capacitor offers a great way to regulate the speed of the air conditioner fan motor, and its air conditioner fan motor capacitor helps to keep the motor running more efficiently.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
10UF |
|
|
Capacitance tolerance |
±5% |
|
|
Dissipation factor |
≤0.002 f=100Hz |
|
|
Insulation resistance |
R≥2500MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|
| Operation temperature range | -40℃~+85℃ |
| Rated Voltage | 110V.AC-630V.AC |
| Capacitance Range | 0.1uF~20uF |
| Capacitance tolerance | ±5% (J),±10%(K) |
| Dissipation factor | tgō0.001(at 100Hz) |
| Withstand voltage Between terminals | 2.0Un(10s) |
| Withstand voltage Terminals to case | 2000V.AC |
| Insulation resistance | CXRs>5000s |
| Flame retardation | UL94V-0 |
| Referenced standard | IEC 6025 UL810 GB3667-2005 |

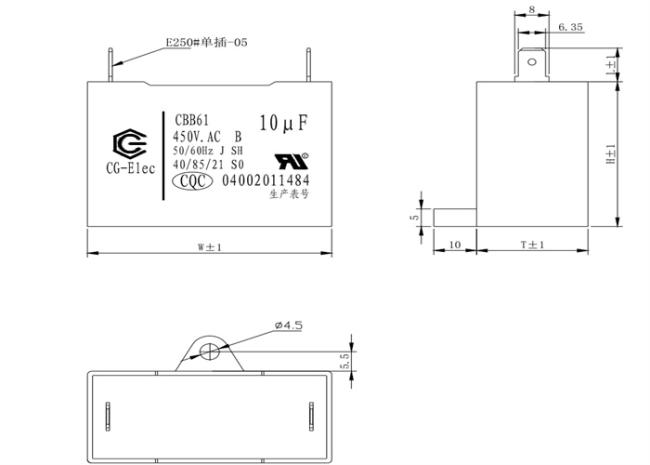

Outline Drawing(W=2-17/64in,T=1-1/32in,H=1-1/2in)
