CBB61 Fan Air Conditioning Start Capacitor 450V 3.0UF Motor Fan Run Capacitor 10000 hours
CBB61 450V 3.0UF Air Conditioner Fan Capacitor and Epoxy Filling
This air conditioner fan capacitor is a specialized motor controller designed to be used in air conditioner fan applications. It is designed to be durable and reliable, with a 450VAC voltage rating and two quick-connect terminals for easy installation. It can be installed quickly and easily with the plastic triangle with location hole. This air conditioner fan motor controller also acts as an overload protector, essential for the long-term performance of your air conditioner fan.
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Dissipation factor |
≤0.002 f=100Hz |
|
|
Insulation resistance |
R≥2500MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|

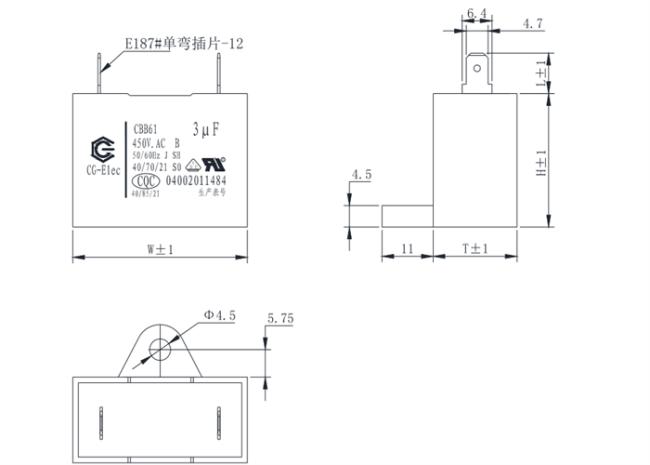

Outline Drawing(W=1-15/32in,T=45/64in,H=1-7/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packaging and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
