CBB61 Air Conditioner Fan Capacitor 3.5uF 450V 40 / 85 / 21 B-class SH Front lug
CBB61 Air Conditioner Fan Capacitor 3.5uF 450V40 / 85 / 21 B-class SH Front lug
Air conditioner fan motor capacitor is an essential component of air conditioner fan motors, providing motor start and running functions. It is an Original Manufacturer/ODM/Agency/Retailer product with a voltage rating of 450VAC. The installation type is a plastic triangle with location hole, and the reference standard is UL810. It is a reliable and efficient product and is suitable for various air conditionrt motor applications.
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.5UF |
|
|
Capacitance tolerance |
±5% |
|
|
Dissipation factor |
≤0.002 f=100Hz |
|
|
Insulation resistance |
R≥2500MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|
| Operation temperature range | -40℃~+85℃ |
| Rated Voltage | 110V.AC-630V.AC |
| Capacitance Range | 0.1uF~20uF |
| Capacitance tolerance | ±5% (J),±10%(K) |
| Dissipation factor | tgō0.001(at 100Hz) |
| Withstand voltage Between terminals | 2.0Un(10s) |
| Withstand voltage Terminals to case | 2000V.AC |
| Insulation resistance | CXRs>5000s |
| Flame retardation | UL94V-0 |
| Referenced standard | IEC 6025 UL810 GB3667-2005 |

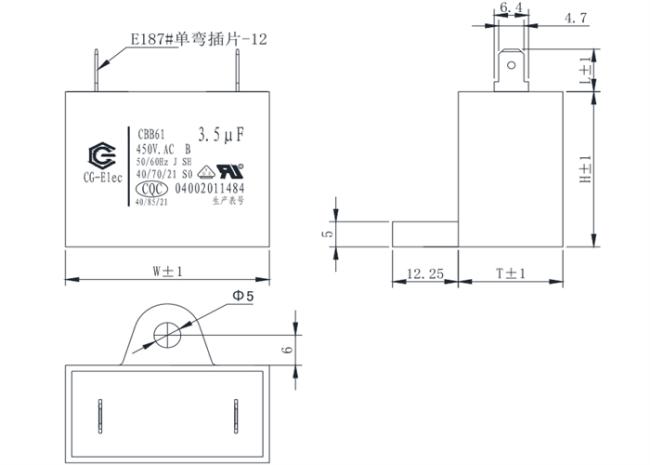

Outline Drawing(W=1-1/2in,T=49/64in,H=1-7/32in)
