450V 6.0mfd CBB61 Two Quick-Connect Terminals Air Conditioner Fan Capacitor
CBB61 450V 6.0UF Two Quick-connect Terminals Air Conditioner Fan Capacitor
The air conditioner fan capacitor is a motor stabilizer and overload protector ideal for air conditioner etc. It is composed of a 94-V0 retardant plastic box and epoxy filling, ensuring a high level of safety and reliability. It is an original manufacturer-made product with guaranteed UL810 compliance, and its tolerance level is ±5%.
Application
Widely applied to starting and running of AC single-phase synchronism motors at 50Hz/60Hz frequency power.They are also widely applied for table fan, floor fan, ceiling fans, wall fan, luxury ceiling fan, exhaust fan, extractor hood, heater, dehumidifier, mahjong machine, smash paper machine, air conditioners, etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
6.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Dissipation factor |
≤0.002 f=100Hz |
|
|
Insulation resistance |
R≥2500MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|

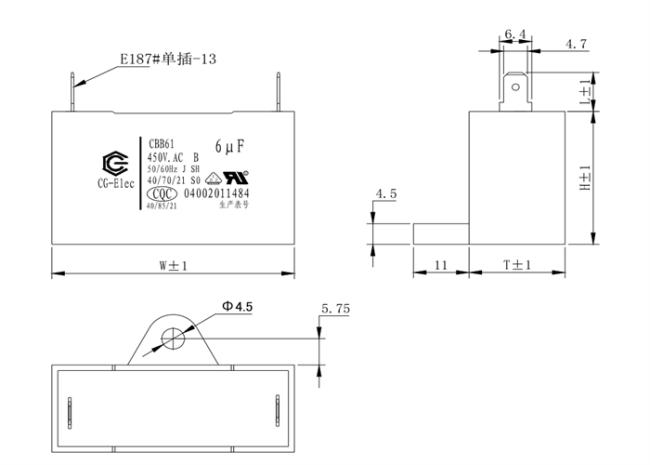

Outline Drawing(W=1-57/64in,T=29/32in,H=1-3/8in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop environment and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
