CBB61 Motor Start Running Capacitor 450V 8.0UF Fan Capacitor Front Lug 10000 Hours
CBB61 450V 8.0UF Air Conditioner Fan Capacitor with Plastic Triangle and Location Hole
Our air conditioner fan capacitor is a highly reliable and durable electrical capacitor for air conditioner.It is designed to meet the reference standard of UL810 and has a strong capability to withstand voltage of 2Un .5s. for efficient and long lasting performance. Our Ceiling Fan Capacitor is supplied by original manufacturers, ODM, agency or retailers. It is manufactured using the best quality raw materials, ensuring superior performance and reliability.
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
8.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Dissipation factor |
≤0.002 f=100Hz |
|
|
Insulation resistance |
R≥2500MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|

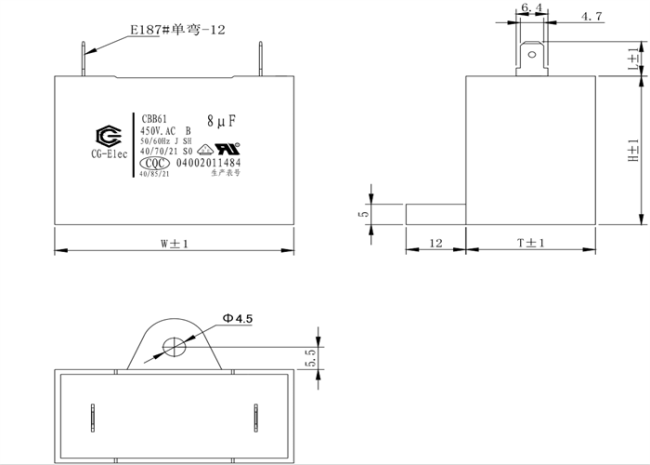

Outline Drawing
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop environment and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
