CBB61 AC Motor Run Celling Fan Capacitor 450V 12UF Film Capacitor 250 Terminal
CBB61 450V 12UF Plastic Box Air Conditioner Fan Capacitor with Epoxy FillingTwo Quick-connect Terminals Plastic Triangle
The air conditioner fan run capacitor is a product designed to enable efficient and reliable operation of air conditionrt fans. It is made with a 94-V0 retardant plastic box and epoxy filling, which provides a high level of protection against potential damage. This product is designed for a 40/85/21 climatic category, making it suitable for use in many different environments. Additionally, it has a tolerance of ±5%, which ensures that it offers consistent performance.
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
12UF |
|
|
Capacitance tolerance |
±5% |
|
|
Dissipation factor |
≤0.002 f=100Hz |
|
|
Insulation resistance |
IR≥450MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|

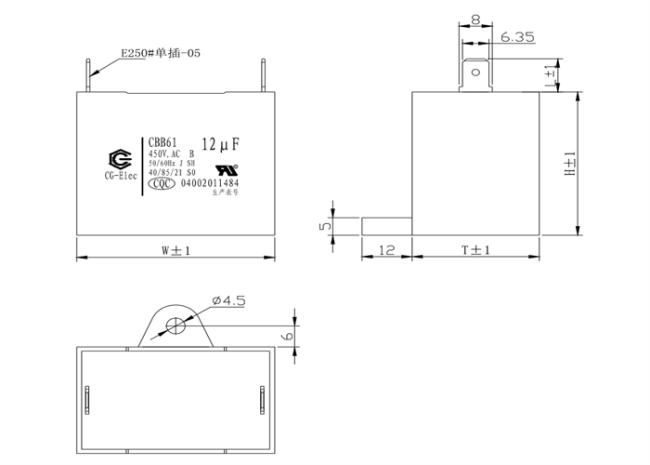

Outline Drawing(W=1-7/8in,T=1-3/16in,H=1-41/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
