20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original
CBB61 450V 20UF Air Conditioner Fan Capacitor from Original
The air conditioner fan capacitor is a high-quality electrical capacitor designed for air conditioner fan applications. The capacitor features two quick-connect terminals and a tolerance of ±5%, meeting the UL810 reference standard. It can withstand a voltage of 2Un .5s and comes with a plastic triangle with a location hole for easy installation. It is an ideal solution for air conditioner fan runs and control, providing reliable and efficient performance.
Application
Start up and operation of single phase motors for 50 / 60Hz AC power supply.
Advantage
High stability,Good self-healing,High reliability,Insensitivity structure,Cost effective
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
20UF |
|
|
Capacitance tolerance |
±5% |
|
|
Dissipation factor |
≤0.002 f=100Hz |
|
|
Insulation resistance |
R≥250MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|

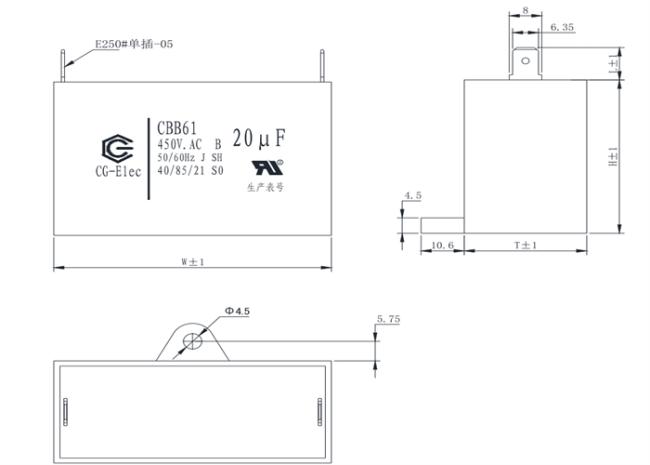

Outline Drawing(W=2-21/32in,T=1-3/16in,H=1-49/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
