CBB61 Air Conditioner Fan Capacitor 450V 2.2mfd B-Class Black Fan Capacitor And Self-Healing
CBB61 450V 2.2UF B-Class Black Air Conditioner Fan Capacitor For And Self-Healing
The products are made of metallized polyprorylene film, non- inductive construction, encapsulated in a plastic case, sealed with epoxy resin,fetch out in many ways.
1.Stable reliability
2.Excellent Self-healing property
Widely applied to starting and running of AC single-phase synchronism motors at 50Hz/60Hz frequency power.
Applications
Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.2UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours |
|
|
Insulation resistance |
R≥2300MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|

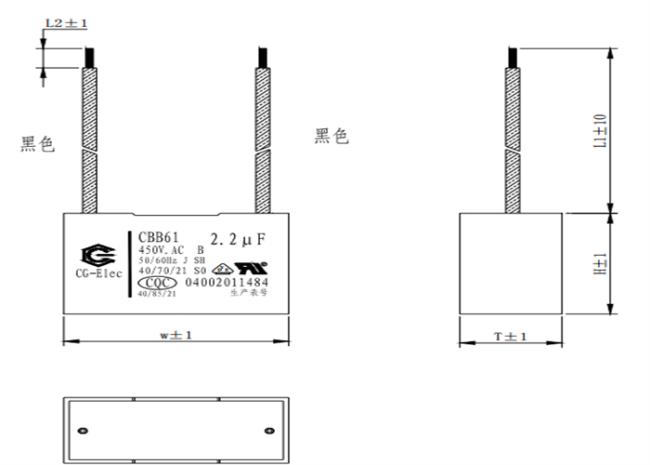

Outline Drawing(W=1-29/64in,T=43/64in,H=1-1/32in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
