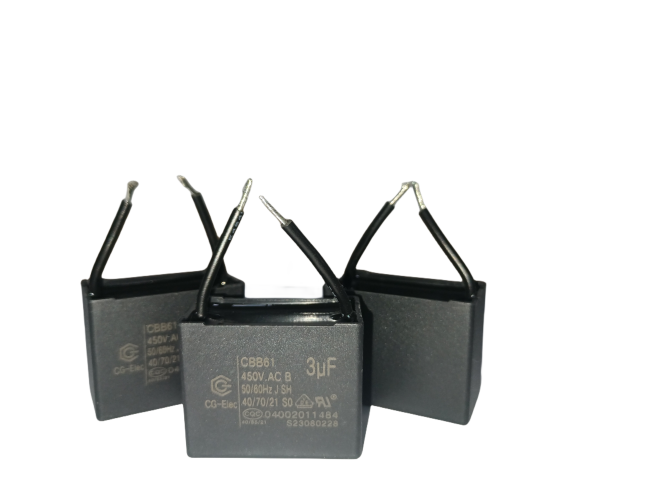

CBB61 Starting Capacitor 450V 3.0UF Air Conditioner Capacitor Black Wire B-Class
Produce Description
3.0uF±5% 450V AC Polypropylene Film Capacitor and Fan Capacitor, 3.0MFD Factory wholesales CBB61 Ceiling Fan Capacitor.
Features
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Techical Parameters
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage |
2Un .5s |
|
|
Insulation resistance |
R≥1700MΩ at 100VDC |
|
|
Flammability |
UL94V-0 |
|
Outline Drawing (W=1-29/64IN,T=3/4IN,H=1-3/16in)
Manfacturing Process Flow
Why Choose XWD-CG Capacitors?
One of the largest metalized polypropylene film capacitor manufacturers in China;
Fast lead time due to fully automatic production and vertical raw materials supply;
With world-class lab center, strong R&D research and self-owned film metallization technology;
Highly consistent quality products by strictly adhering to ISO and IATF16949;
Proudly work with top brands in appliances as well as the leading power and new energy customers.
