Air Conditioner Starting Capacitor CBB61 450V 1.5UF RoHs Flim Capacitor B-Class
Air Conditioner Starting Capacitor CBB61 450V 1.5UF RoHs Flim Capacitor B-Class
Air Conditioner Fan Capacitor is an essential part for air conditioning. It is an electronic component that stores electric charge and provides an electrical current to the air conditioner's fan motor. It is designed for use in AC applications, such as air conditioners, where a stable voltage is necessary to ensure that the fan motor operates properly.
Applications
It is made from 94-V0 retardant plastic box and epoxy filling, giving it superior safety and reliability. The connection type is two quick-connect terminals, allowing for easy installation and maintenance.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
1.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours |
|
|
Insulation resistance |
IR≥5000MΩ at 100VDC |
|
|
Withstand voltage |
2Un .5s
|
|

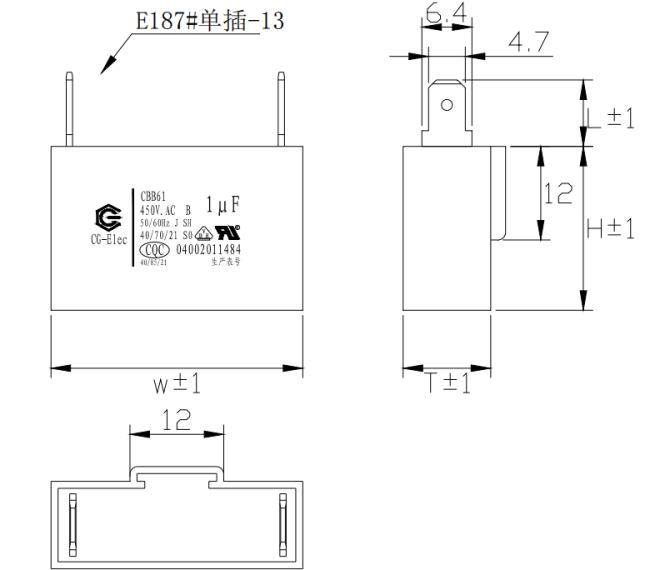

Outline Drawing(W=1-17/64in,T=31/64in,H=53/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Why Choose XWD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
