CBB61 450V 2.8UF Air Conditioner Fan Capacitor RoHS Start Run Capacitor SH 10000 hours
CBB61 450V 2.8UF RoHS Air Conditioner Fan Capacitor with High Withstand Voltage
Air conditioner Fan Capacitor is an essential component for air conditioner fan motor overload protection, speed regulation and fan stability. It has a tolerance of ±5%, and the installation type is a plastic triangle with a location hole. The shell material is 94-V0 retardant plastic box and epoxy filling, and the withstand voltage is 2Un .5s, making it suitable for air conditioner fans and other applications. It has a long service life and reliable performance, providing protection for the motor and improving the fan's stability.
Applications
Widely applied to starting and running of AC single-phase synchronism motors at 50Hz/60Hz frequency power.They are also widely applied for table fan, floor fan, ceiling fans, wall fan, luxury ceiling fan, exhaust fan, extractor hood, heater, dehumidifier, mahjong machine, smash paper machine, air conditioners, etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-25℃～+85℃ ( 25/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.8UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours |
|
|
Flammability |
UL94V-0 |
|
|
meet the ROHS requirement |
||

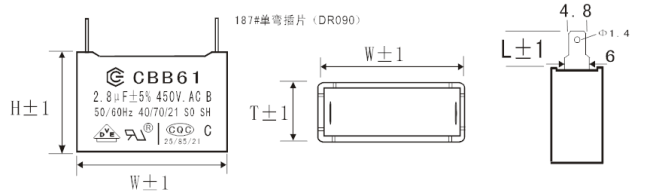

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
