Cbb61 450V 3.0UF Run Capacitor Air Conditioner Fan Two Quick Connect Terminal B-Class
CBB61 450V 3.0UF Two Quick-connect Terminals Blue 94-V0 Retardant Plastic Box Air Conditioner Fan Capacitor RoHS
It features a 94-V0 retardant plastic box and epoxy filling, two quick-connect terminals, a ±5% tolerance, a 40/85/21 climatic category, and a blue color. It helps extend the life of the fan motor by stabilizing the current and preventing overload, making it a must-have accessory for any air conditioner fan.
Applications
They are also widely applied for table fan, floor fan, ceiling fans, wall fan, luxury ceiling fan, exhaust fan, extractor hood, heater, dehumidifier, mahjong machine, smash paper machine, air conditioners, etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-25℃～+85℃ ( 25/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours |
|
|
Flammability |
UL94V-0 |
|
|
meet the ROHS requirement |
||

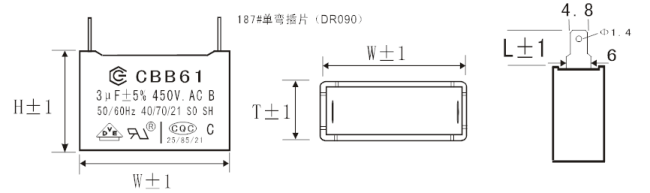

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
