CBB61 450V 3.2UF AC Capacitor Air Conditioner Fan Capacitor 10000 Hours 25 / 85 / 21
CBB61 450V 3.2UF AC Capacitor Air Conditioner Fan Capacitor 10000 Hours 25 / 85 / 21
Air conditioner fan capacitor is a air conditioner fan motor controller used to control the speed of air conditioner fans, and other appliances. It has two quick-connect terminals, a voltage rating of 450VAC, and a tolerance of ±5%.
Applications
Widely applied to starting and running of AC single-phase synchronism motors at 50Hz/60Hz frequency power.They are also widely applied for table fan, floor fan, ceiling fans, wall fan, luxury ceiling fan, exhaust fan, extractor hood, heater, dehumidifier, mahjong machine, smash paper machine, air conditioners, etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-25℃～+85℃ ( 25/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.2UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage |
1.75Un .5S |
|
|
Flammability |
UL94V-0 |
|
|
meet the ROHS requirement |
||

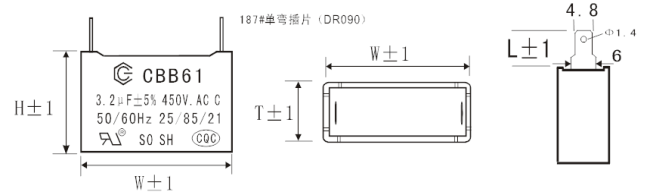

Outline Drawing(1mm=0.0394in)
